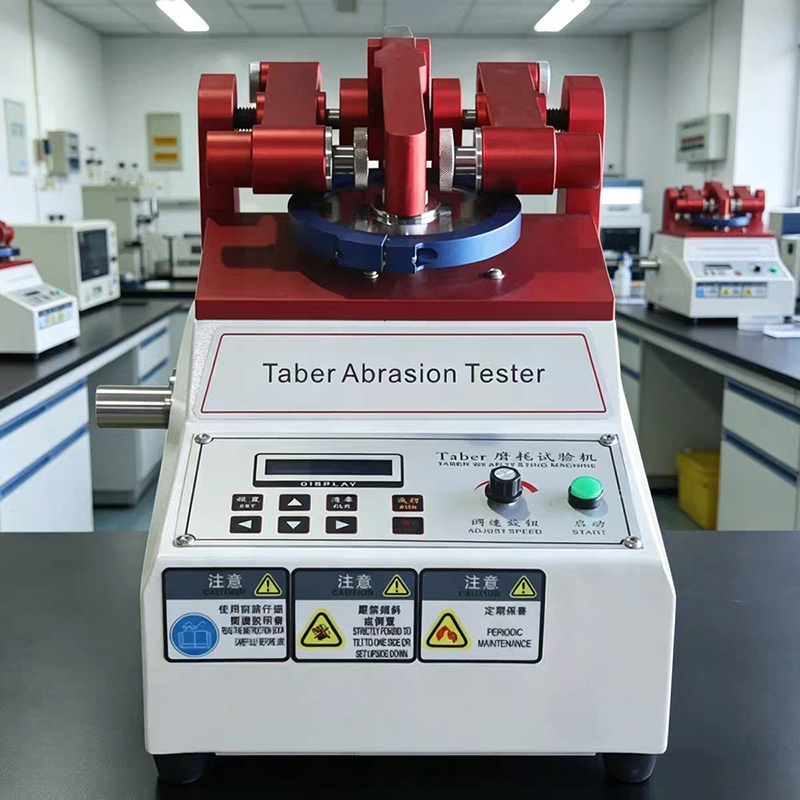

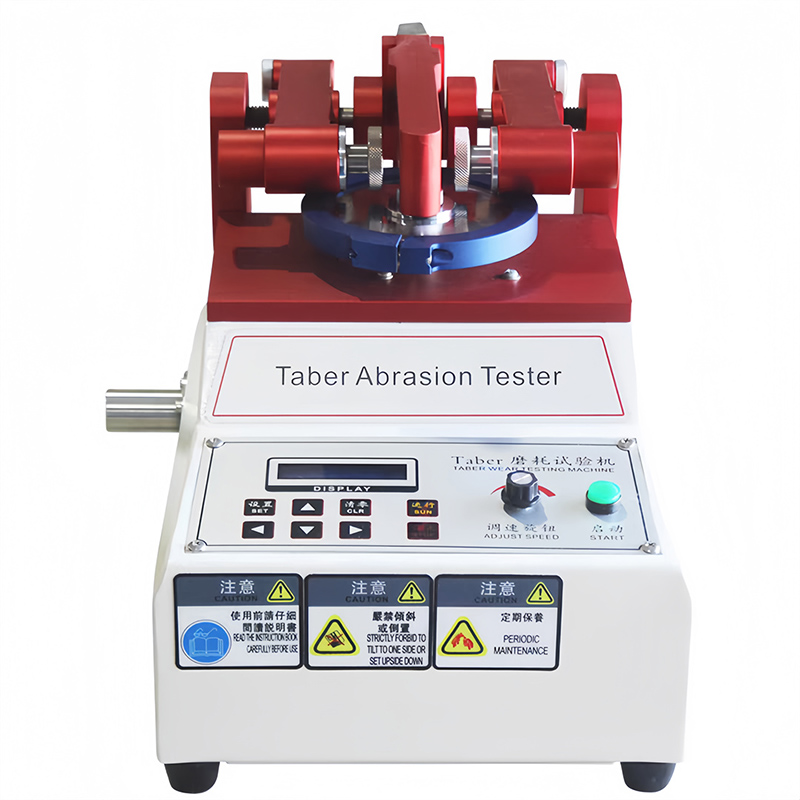

TABER耐磨试验机
TABER耐磨试验机
用途use
TABER耐磨试验机适用于皮革、布料、涂料、纸、地砖、合板、玻璃、天然橡胶等到耐磨试验,方法为用标准切刀裁取试件,用规定型号的砂轮,并负荷一定的重量加以磨耗,到规定的转数后取出试件,观察试件磨后的状况或试件试验前的重量与试验后的重量差.
The TABER wear tester is designed for durability testing of materials including leather, fabrics, coatings, paper, floor tiles, plywood, glass, and natural rubber. The procedure involves cutting test specimens with standard blades, then grinding them using a designated grinding wheel under controlled load. The specimens are removed after reaching specified rotational speeds, with evaluation based on either their post-grinding condition or the weight difference between pre-and post-test measurements.
特点Feature
1.具有多功能性，可测试不同材料和涂层的耐磨性；
2.高精度，采用电子式计数器和精密负载单元，部分型号有数字式控制系统，保证测试结果准确；
3.操作简单，有触摸屏控制界面和预设程序。
1. Multifunctional capability to test wear resistance of various materials and coatings; 2. High precision with electronic counters and precision load cells, some models feature digital control systems to ensure accurate test results;
3. User-friendly operation with touchscreen interface and preset programs.
技术参数Technical Parameters
1.试片：外径108mm,内径8mm
2.荷重：250g,500g,1000g
3.计数器：电子显示6位数，自动停机
4.试验盘转速：60,70转/分钟或指定
5.机台尺寸：（30x43x30）cm
6.机台重量：约30kg
7.附件：试片切刀1支,扳手1支.砂轮1组,纱纸1包
8.标配砂轮：H-18
其它型号砂轮自行选购 ：涂料：CS17、合板：CS32 CS33、布：H18 H22，CS17、塑胶：CS17，H18，H2
9.电源：AC220V 50HZ
1. Test piece: Outer diameter 108mm, inner diameter 8mm
2. Load capacity: 250g,500g,1000g
3. Counter: 6-digit electronic display with automatic shutdown
4. Test disk rotation speed: 60/70 rpm or user-defined
5. Machine dimensions: (30x43x30) cm
6. Machine weight: Approximately 30kg
7. Accessories: 1 test piece cutter, 1 wrench, 1 set of grinding wheels, 1 roll of sandpaper
8. Standard grinding wheels: H-18 Additional models available: Coatings: CS17, Plywood: CS32, CS33, Fabric: H18, H22, CS17, Plastics: CS17, H18, H2
