小产品跌落试验机

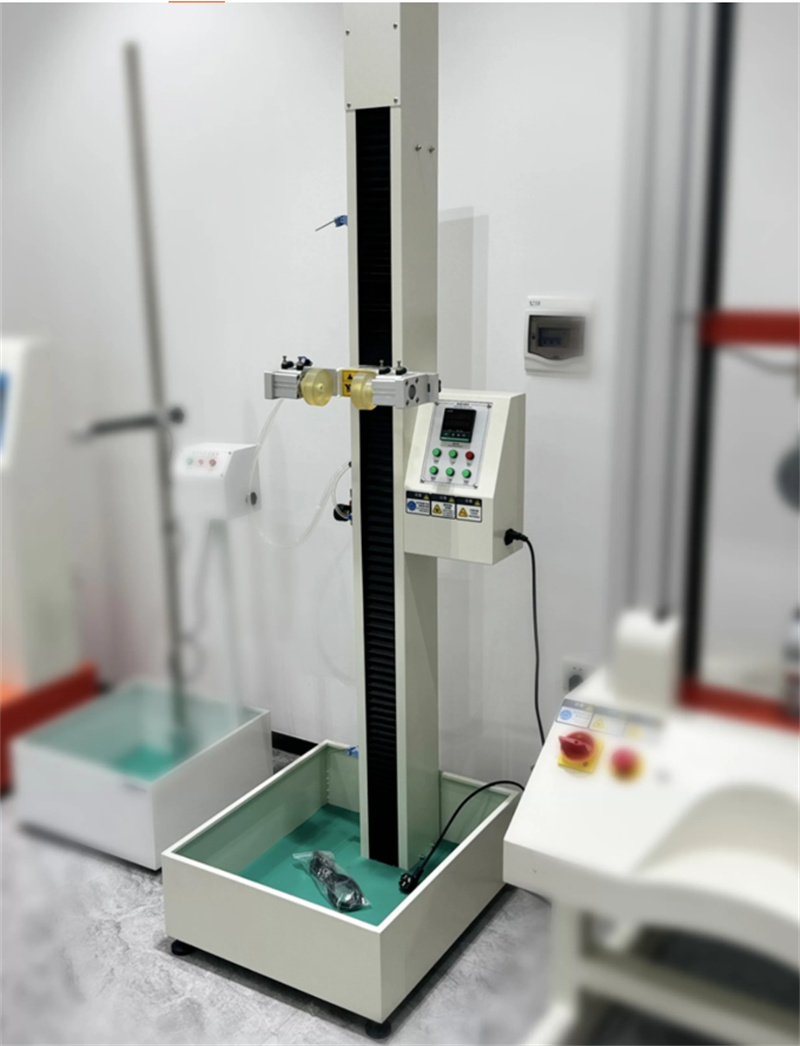

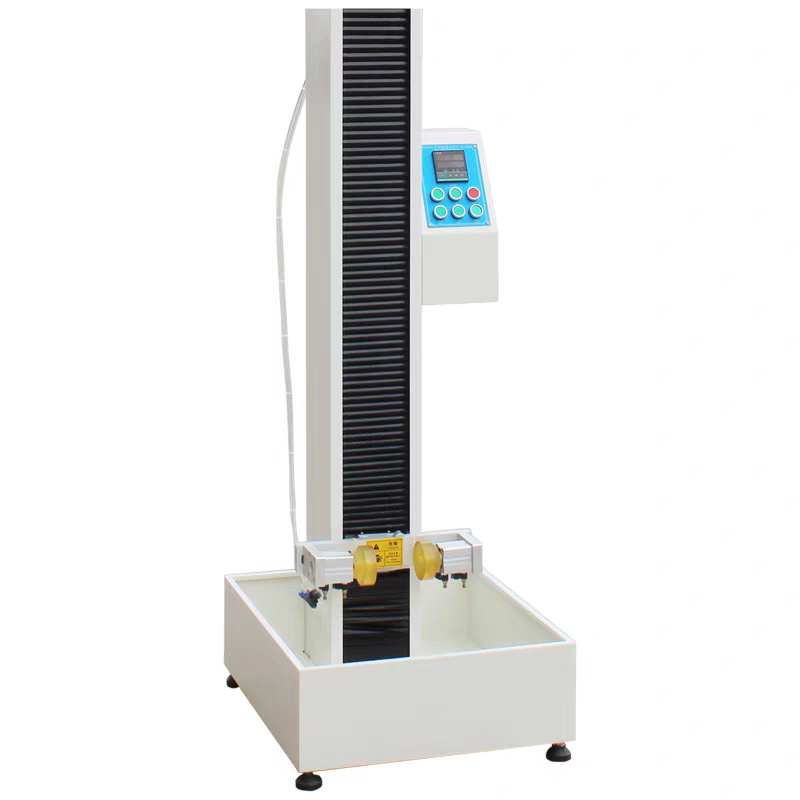

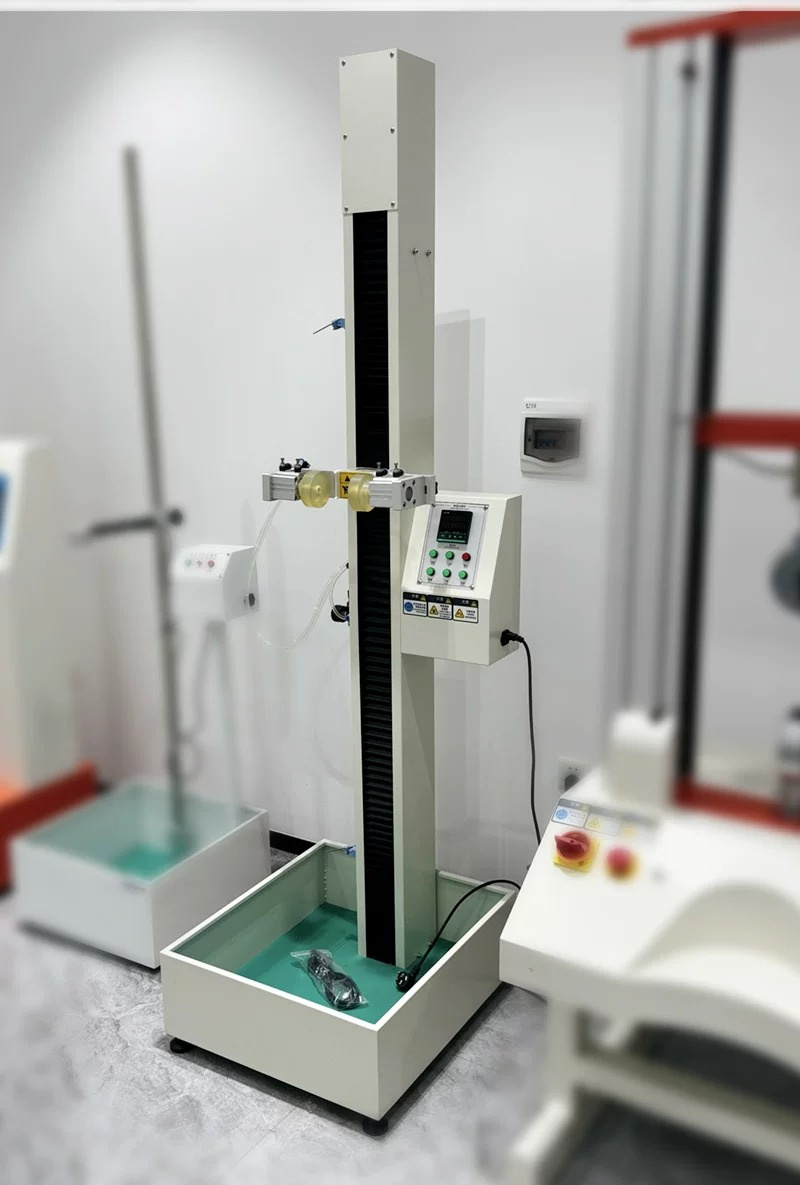

自由跌落试验机

自由跌落试验机也叫手机跌落试验机，适用于各种瓶子和手机、电池、充电器、适配器、对讲机、电子词典、楼寓对讲电话、CD、MD、MP3等小型消费类电子制品及零部件之自由落下试验产品的自由跌落试验。

The free-fall tester, also known as a mobile phone drop tester, is designed to evaluate the drop resistance of various small consumer electronics and components, including bottles, mobile phones, batteries, chargers, adapters, walkie-talkies, electronic dictionaries, apartment intercoms, CDs, MDs, MP3 players, and similar devices.

产品参数:

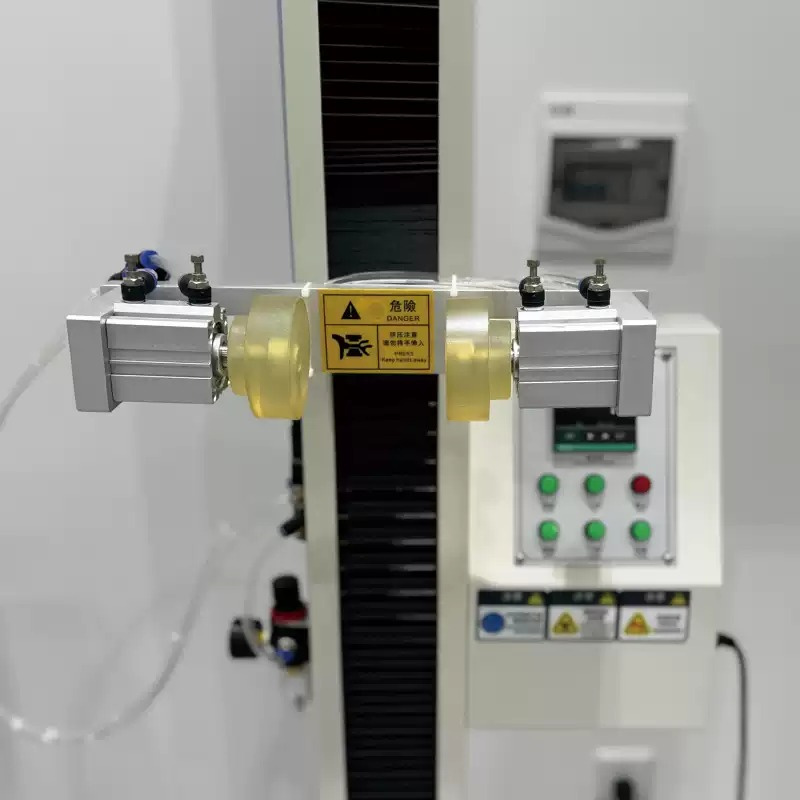

多角度跌落装置:0°、45°、90°;跌落高度指示:1cm;

跌落有效高度:300-1800mm(可选2000mm);允许试件最大重量:2kg;跌落地板介质:钢板;跌落范围:500x600mm;

使用气源:≥0.5Mpa;机台尺寸:W800XD900XH2200mm;电源:AC220V、50HZ、5A。

Product Parameter ：

Multi-angle drop test rig: 0°,45°,90°; Drop height indicator: 1cm; Effective drop range: 300-1800mm (2000mm optional); Maximum specimen weight: 2kg; Drop surface material: steel plate; Drop area: 500x600mm; Air pressure: ≥0.5Mpa; Machine dimensions: W800xD900xH2200mm; Power supply: AC220V,50HZ, 5A。
