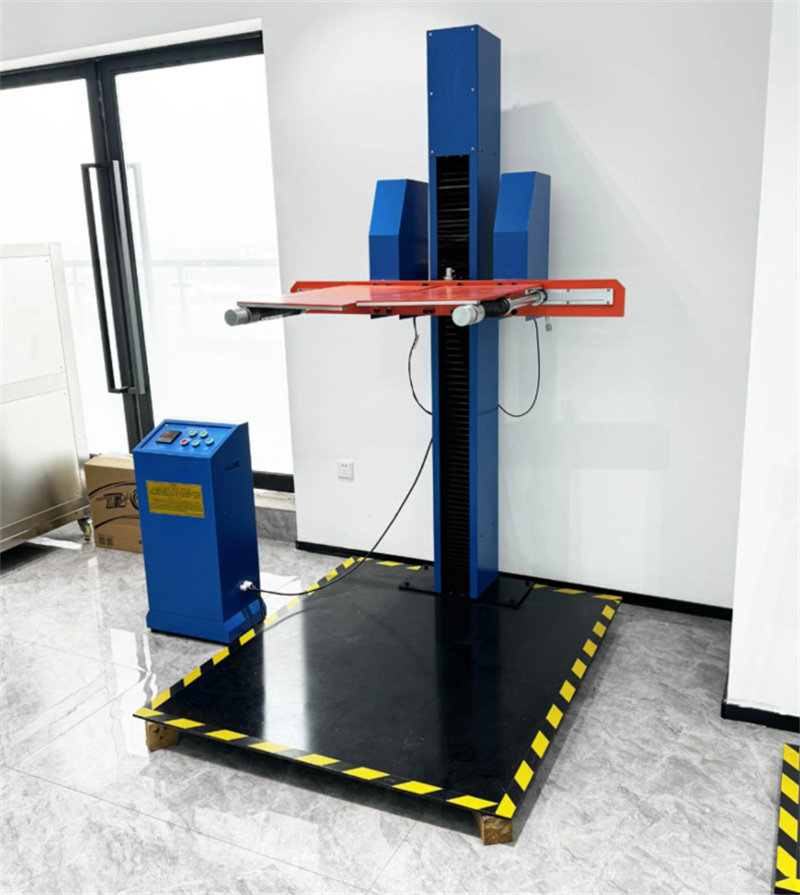

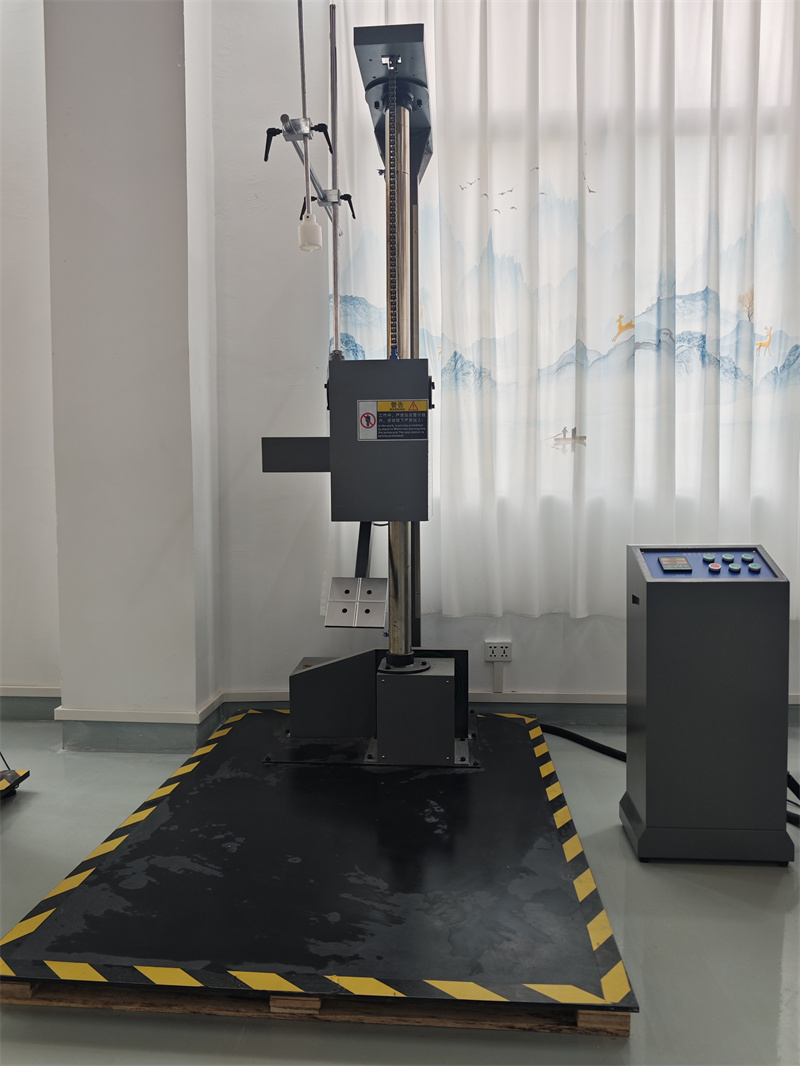

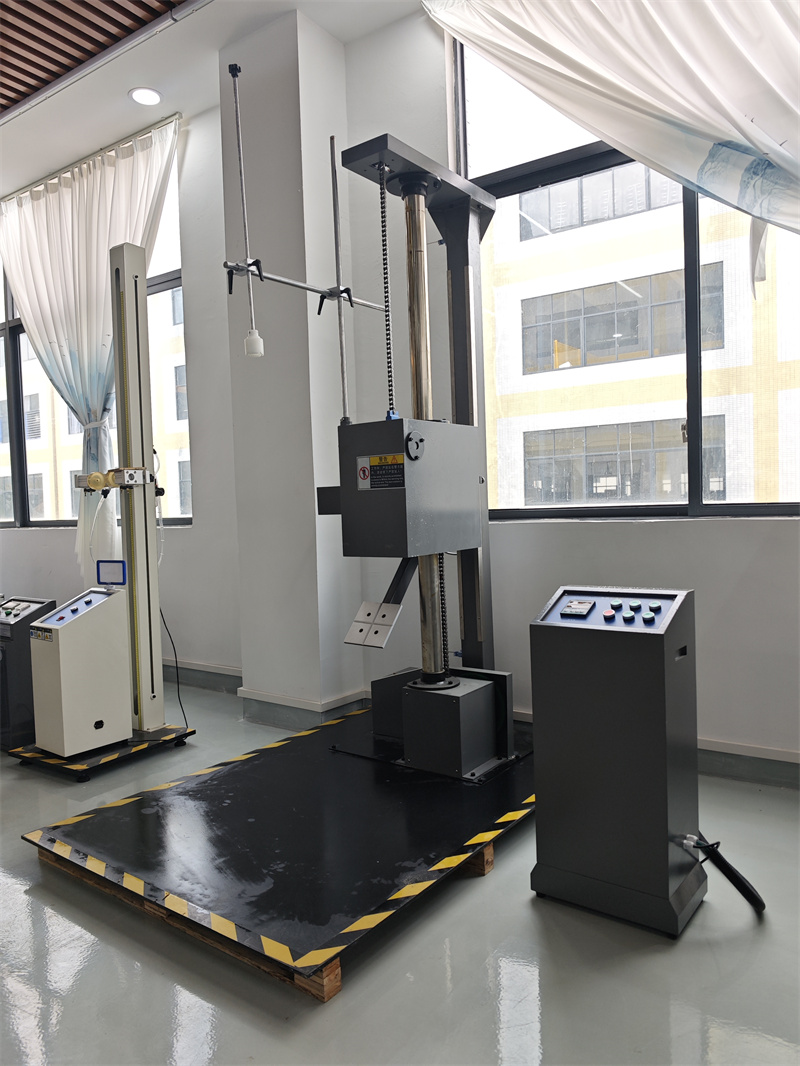

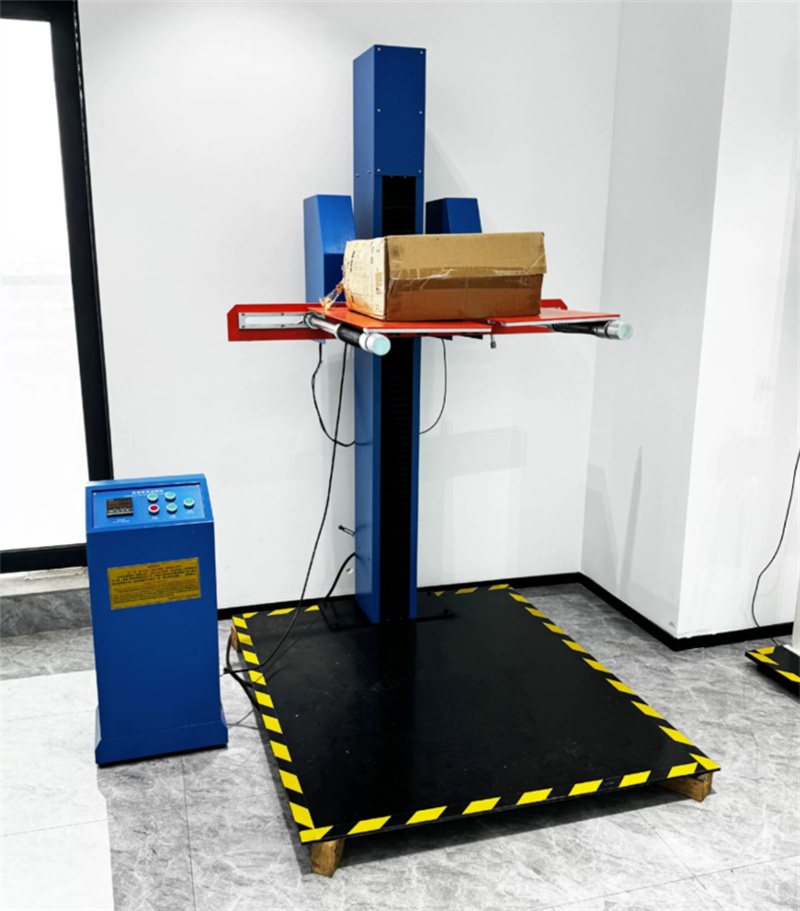

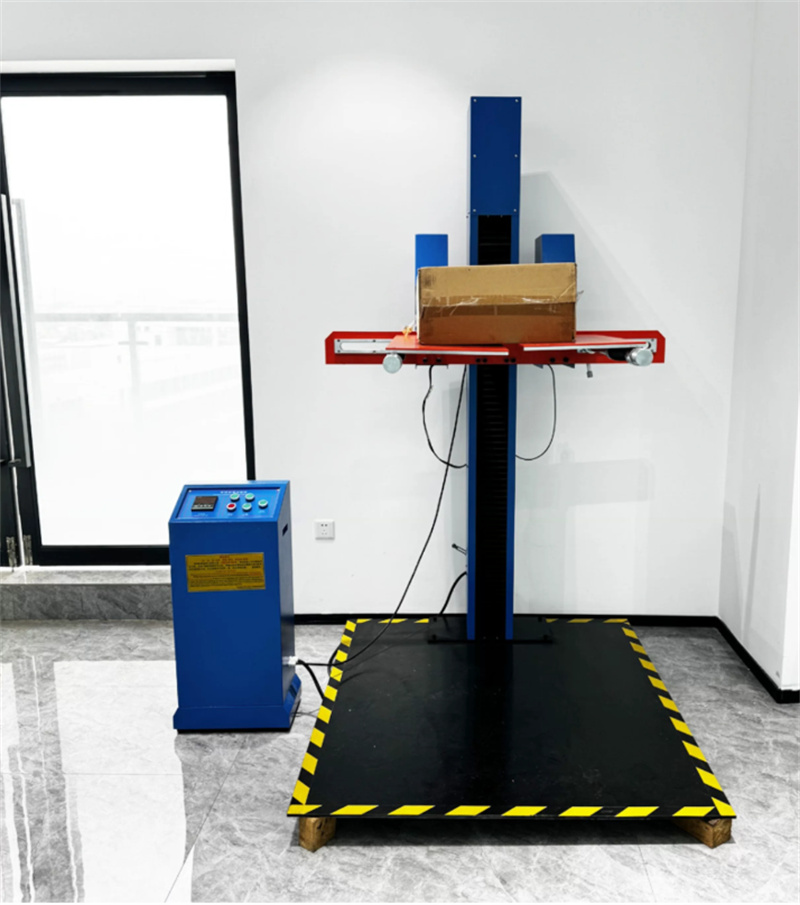

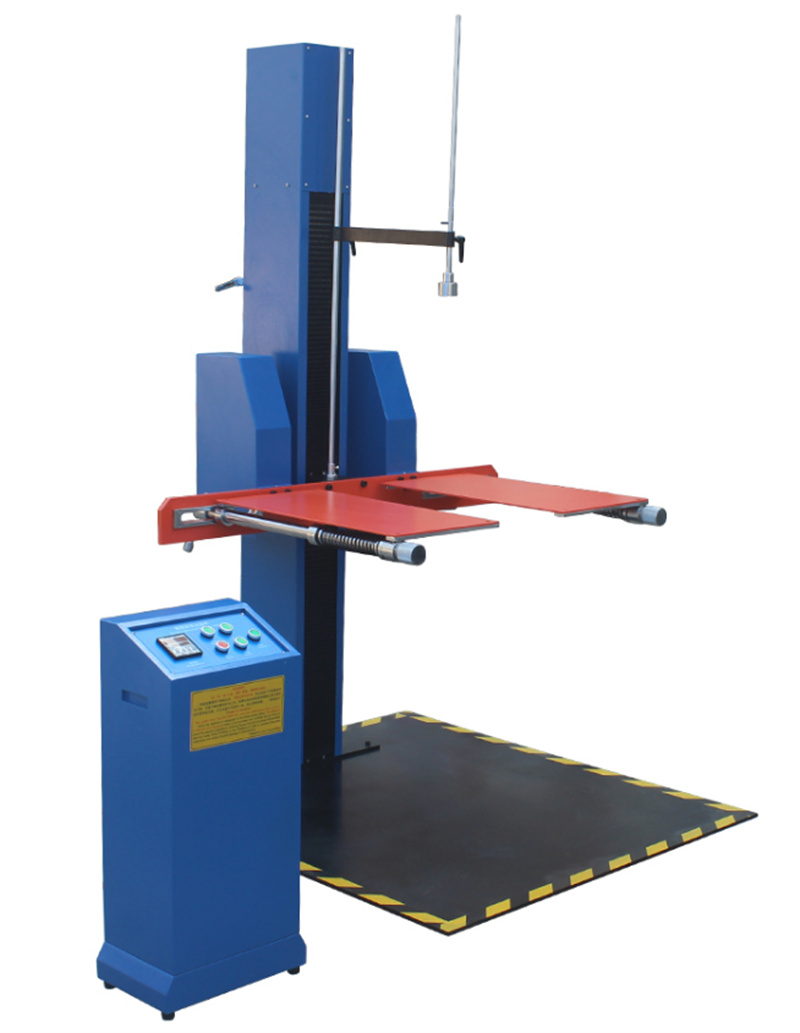

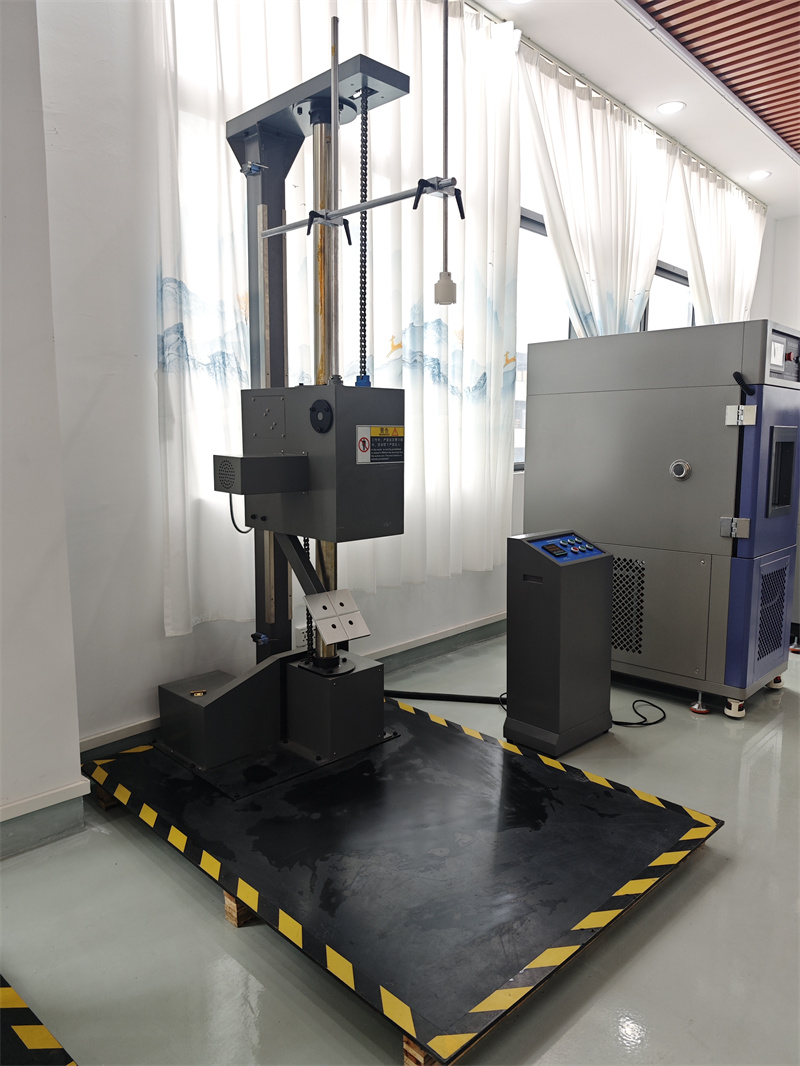

单臂跌落试验机
单臂/双臂跌落试验机
single arm drop
KE-6311/KE-6312
产品用途：
单臂跌落试验机本机专用于测试产品包装受到坠落之受损情况，及评估运输搬运过程时耐冲击强度 适用标准：ISO2248 JISZ0202-87 GB/T4857.5-92
product use：
The single-arm drop test machine is used to test the damage of product packaging under drop and to evaluate the impact strength during transportation and handling. Applicable standards: ISO2248 JISZ0202-87 GB/T4857.5-92
机器特点：
单臂跌落试验机可对包装件的面、角、棱作自由跌落试验，配备数显高度显示仪及采用译码器进行高度跟踪，从而能精确地给出产品跌落高度，与预设跌落高度误差不超过2%或10MM。本机采用单臂双柱结构，具有电动复位、电控跌落及电动升降装置，使用方便；独有的缓冲装置大大的提高了机器使用寿命、平稳性及安全性。单臂设置，可方便地放置产品。
Machine features：
The single-arm drop tester performs free-fall tests on packaging surfaces, corners, and edges. Featuring a digital height display and encoder-based height tracking, it delivers precise drop height measurements with preset values showing no more than 2% (10mm) deviation. Its dual-column single-arm design incorporates electric reset, controlled drop, and lifting mechanisms for user-friendly operation. The proprietary cushioning system significantly extends service life while ensuring stability and safety. The compact single-arm configuration allows effortless product placement.
主要技术参数
Key technical parameters
|
跌落高度 fall height |
300—1500可调 400-1500可调 300–1500 adjustable 400–1500 adjustable |
|
试件最大重量 maximum weight of specimen |
0-80Kg
|
|
底板厚度 plate thickness |
10mm（实心铁板） 10mm (solid iron plate) |
|
试件最大尺寸 maximum size of specimen |
800 x 800 x 1000mm
|
|
衝擊面板尺寸 Impact panel size |
1700 x 1200 mm
|
|
跌落高度误差 fall height error |
±10mm
|
|
试验外形尺寸 Experimental dimensions |
约1700 x 1200 x 2315mm Approximately 1700 x 1200 x 2315mm |
|
净重 net weight |
约300kg About 300kg |
|
试验方式 test method |
面、角、棱全方位跌落 Face, Angle, Edge Full Drop |
|
控制方式 control method,control mode |
电动 motor-driven |
|
落高度误差 landing altitude error |
1%
|
|
击面板平行误差 parallel error of striking plate |
≤1度
|
|
件跌落面在落下过程中与水平夹角误差 Error of the Angle between the Surface of the Piece Falling and the Horizontal |
≤1度
|
|
电源 source
|
380V1 AC380V 50HZ
|
|
功率 rate of work |
1.85KWA |
机台工作室环境要求：
温度：5℃～+28℃[1]（24小时内平均温度≤28℃）
相对湿度：≤85%RH
供电条件 三相四线+保护地线，
电压范围：AC（380±38）V
Environmental requirements for the machine room studio
Operating temperature: 5℃ to +28℃ [1] (with 24-hour average temperature ≤28℃).
Relative humidity: ≤85% RH
Power supply: Three-phase four-wire system with protective ground wire
Voltage range: AC (380±38) V.
