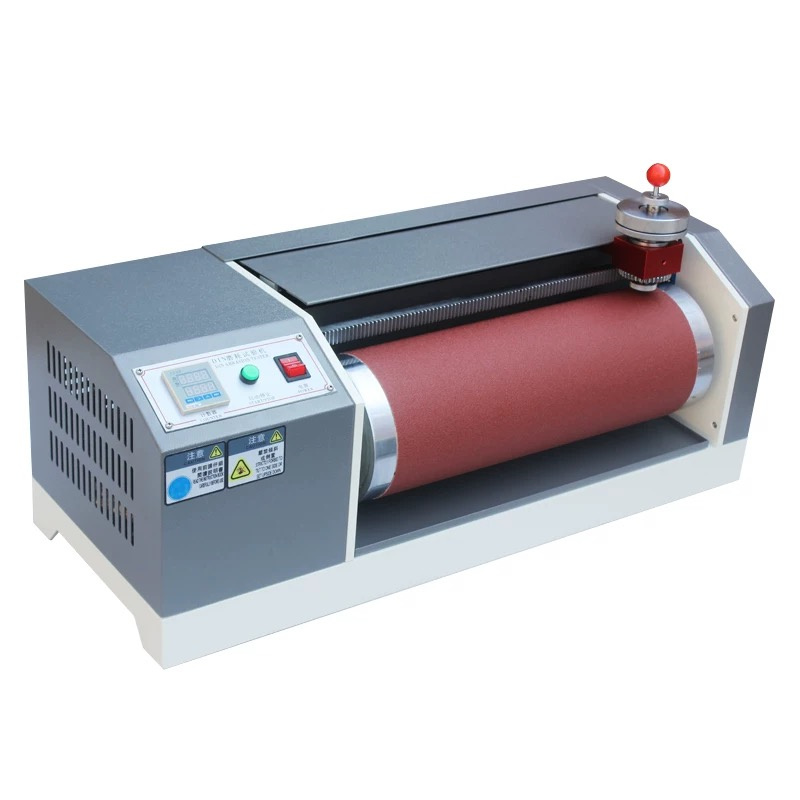

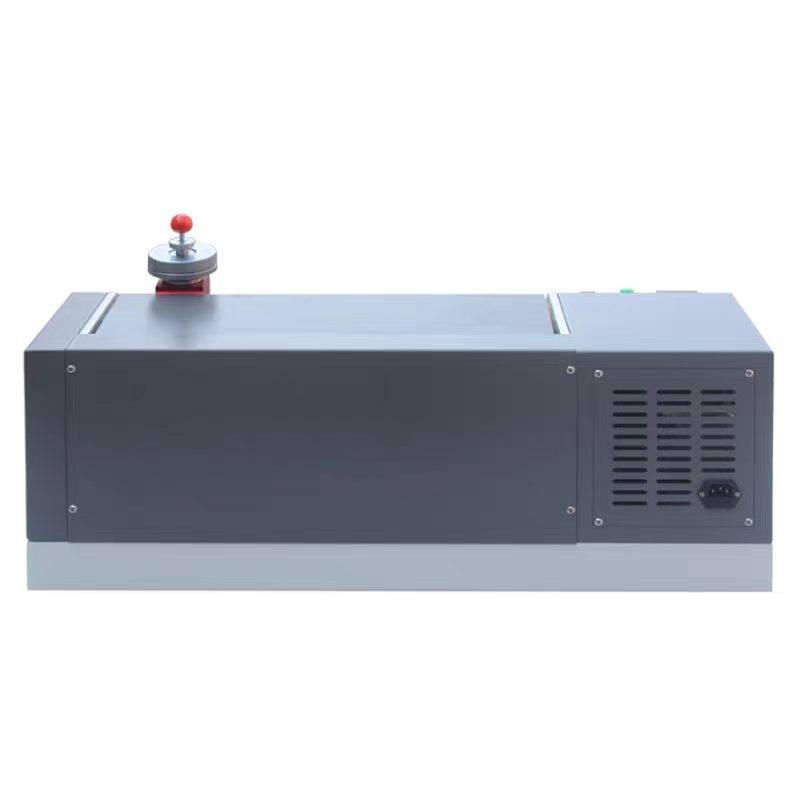

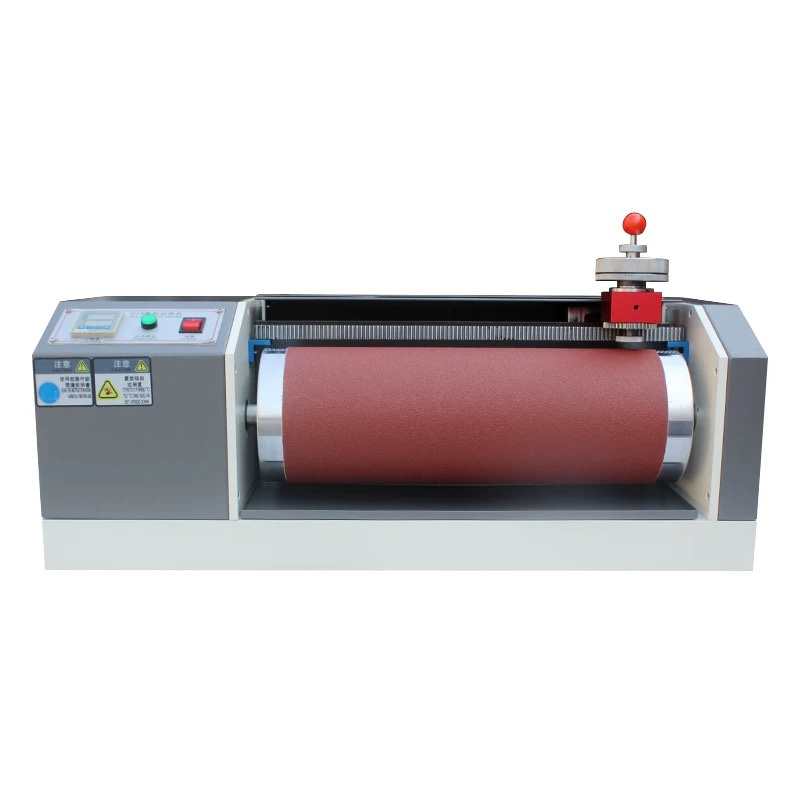

DIN耐磨试验机
DIN磨耗试验机
用途use：

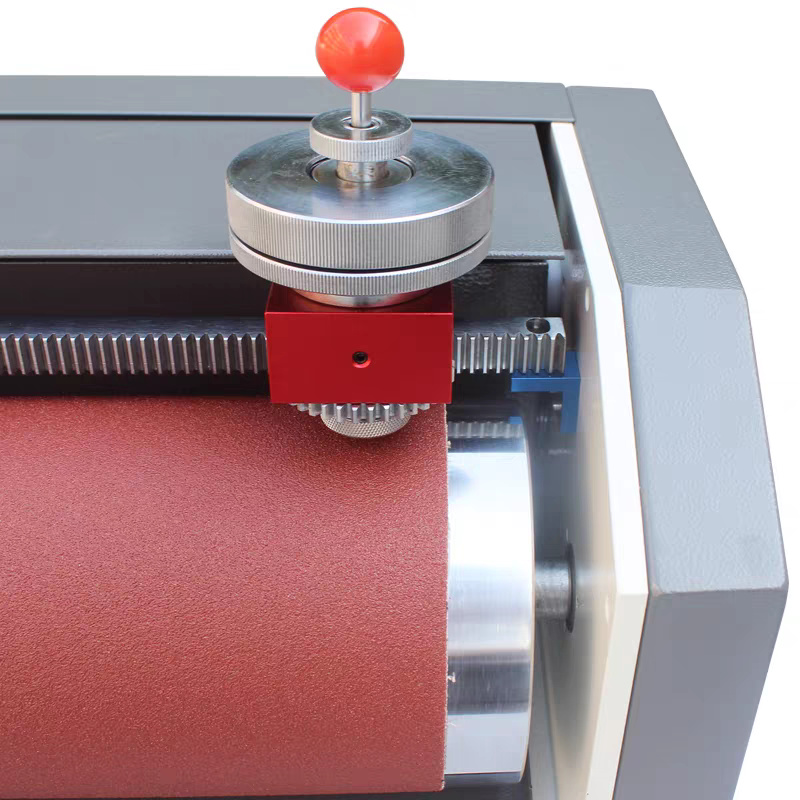

本机适用弹性材料、橡胶、轮胎、输送带、传送带、鞋底软质合成皮、皮革等材质之磨耗测试，设备采用标准化辊筒摩擦系统，砂纸包贴在滚筒表面，试样紧压在带有砂纸的滚筒上，并沿滚筒横向移动。在规定的接触压力下和给定的面积上，试样与砂纸成一定角度，通过设定转速、负荷及摩擦行程，模拟实际使用中的磨损环境。试验结束后，通过测量试样的质量损失，计算体积磨耗量。
This equipment is designed for wear testing of elastic materials, rubber, tires, conveyor belts, shoe soles, soft synthetic leather, and leather. It employs a standardized roller friction system with sandpaper wrapped around the drum surface. The sample is tightly pressed onto the sandpaper-coated drum and moves laterally along it. Under specified contact pressure and area, the sample forms a fixed angle with the sandpaper. By setting rotational speed, load, and friction stroke, the system simulates real-world wear conditions. Upon completion, the volume wear is calculated by measuring the sample's mass loss.
特点feature：

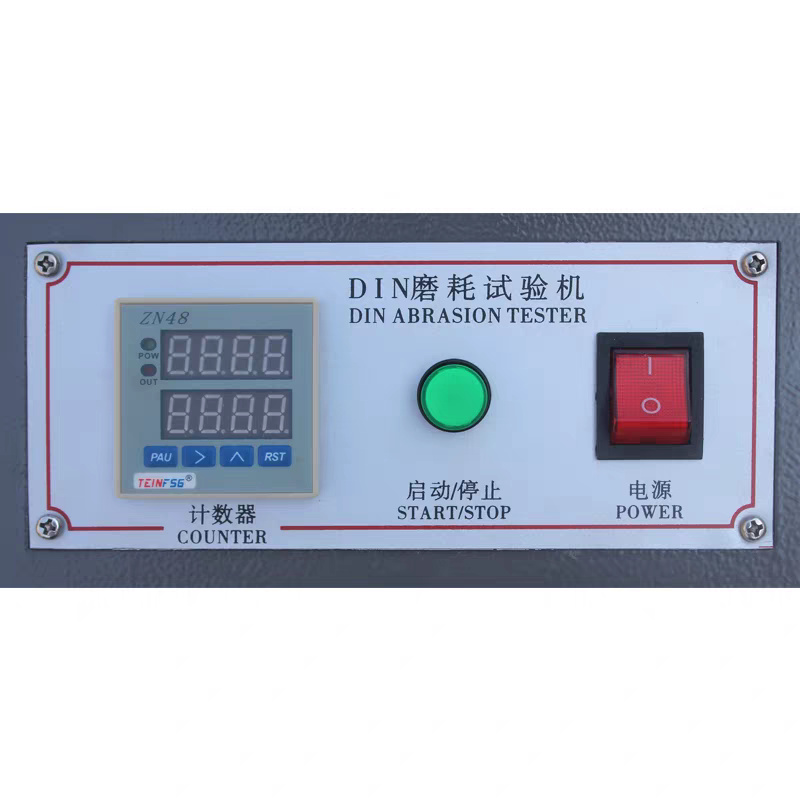

1.具有高效的磨耗测试能力，精确的控制与测量系统，配备高精度传感器和智能控制系统，有自动停止功能；
2.能适配多样化的样品，有不同形状尺寸的样品夹具和易于更换的砂轮组件；
3.设备的再现性和稳定性优秀，且安全可靠，设有防护装置和紧急停机按钮。
1.Equipped with high-efficiency wear testing capabilities, precise control and measurement systems, high-precision sensors, and intelligent control systems featuring automatic stop functionality;
2.adaptable to diverse samples with sample fixtures of various shapes and sizes, as well as easily replaceable grinding wheel assemblies;
3.the device demonstrates excellent reproducibility and stability, ensuring safety and reliability, and is equipped with protective devices and emergency stop buttons.
符合标准Compliant standards：
本机符合DIN-53516ISO/DIS-4649,GB-9867
技术参数Technical Parameters：
Fixture lateral displacement: 4.2mm per roll;
Load capacity: 2.5N,5N,10N; Speed: 40RPM;
Dimensions: 77x35x30cm; Weight: approximately 50kg
