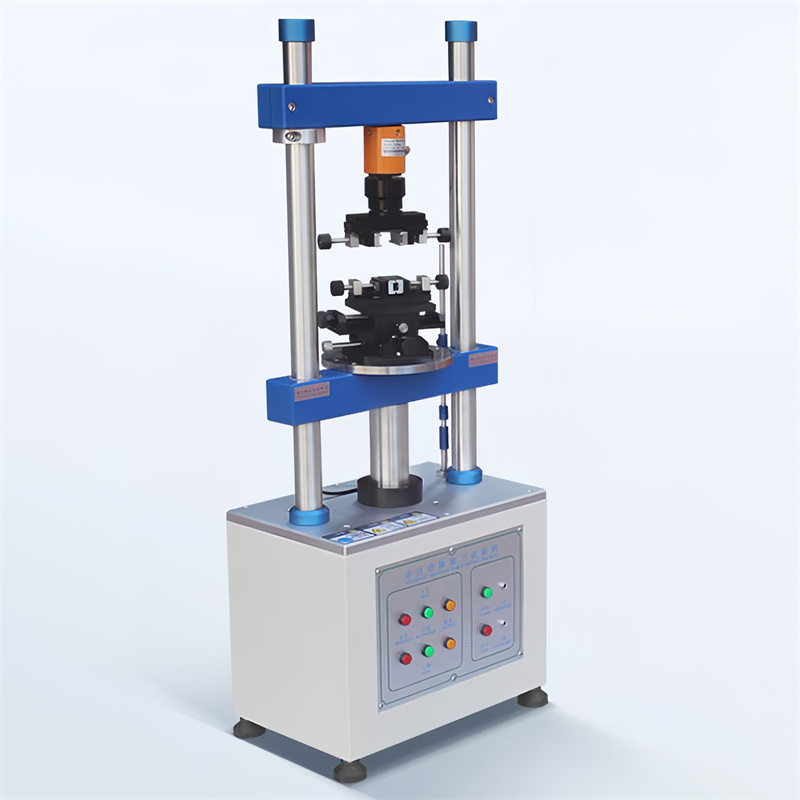

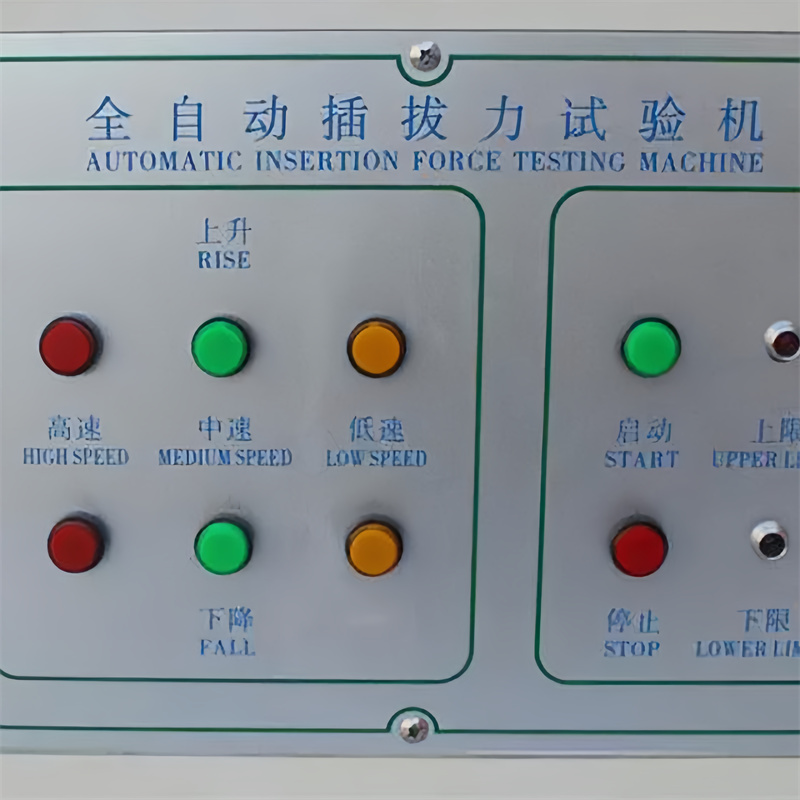

全自动插拔试验机
全自动插拔试验机
产品概述

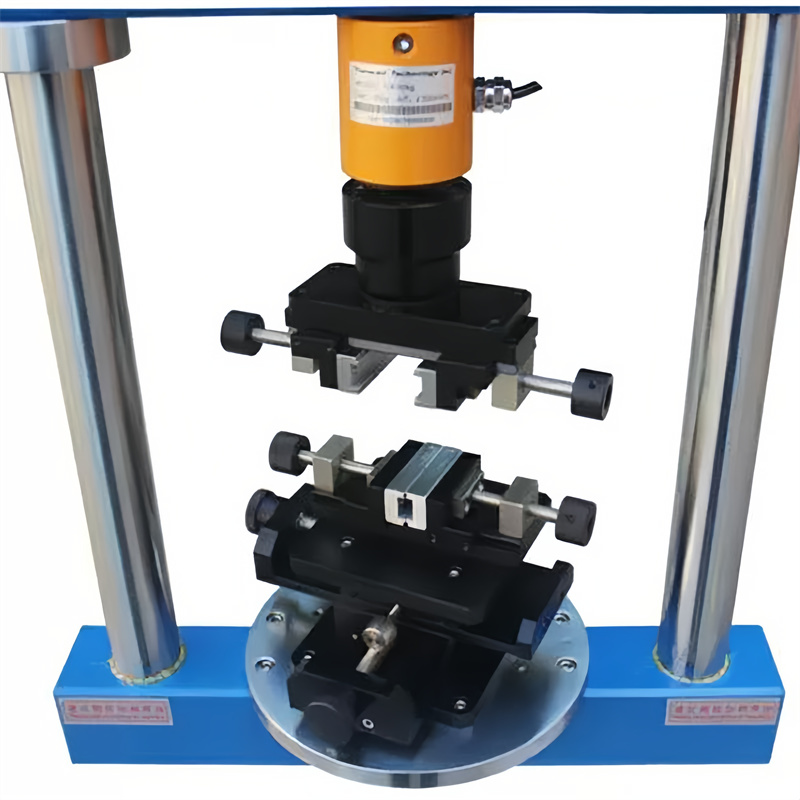

电脑插拔力试验机适用于各种连接器之插入力及拔出力测试，搭配专利设计之自动求心装置，将可得到完全准确之插拔力试验，利用WINooWs视窗中文画面设定，操作简单方便，且所有资料皆可储存(试验条件、位移、曲线图、寿命曲线图、检查报表等)，解决各种连接器测试的夹具问题及测试时公母连接器能自动对准，不会有吃单边的问题。选配动态阻抗测试系统，可在测试插拔力同时测试动态阻抗并绘制(荷重行程-阻抗曲线图)
Product Overview: The computerized connector insertion and removal force tester is designed for comprehensive testing of insertion and removal forces across various connectors. Featuring a patented automatic centering mechanism, it ensures precise measurement results. The user-friendly Windows interface allows intuitive operation, with all test data—including conditions, displacement, curves, lifespan profiles, and inspection reports—being fully stored. This system resolves fixture alignment challenges in connector testing while automatically aligning male and female connectors to prevent unilateral jamming. Optional integration with a dynamic impedance measurement system enables simultaneous testing of insertion forces and dynamic impedance analysis, generating load-displacement impedance curves.
产品特点
1、电话插拔力试验机测试条件皆由电脑画面设定，并可储存。由下拉式菜单勾选设定或直接输入数据。(含试验类别、测定运动方向、荷重测定范围、行程测定范围、行程原点位置、行程原点检出、测定速度、测定总次数、暂停时间每次等候位置、空压次数等)。
2、可储存及打印图形(荷重-行程曲线图-荷重衰减寿命曲线图-检验报表)荷重元超负载之保护功能、可确保荷重元不致损坏。

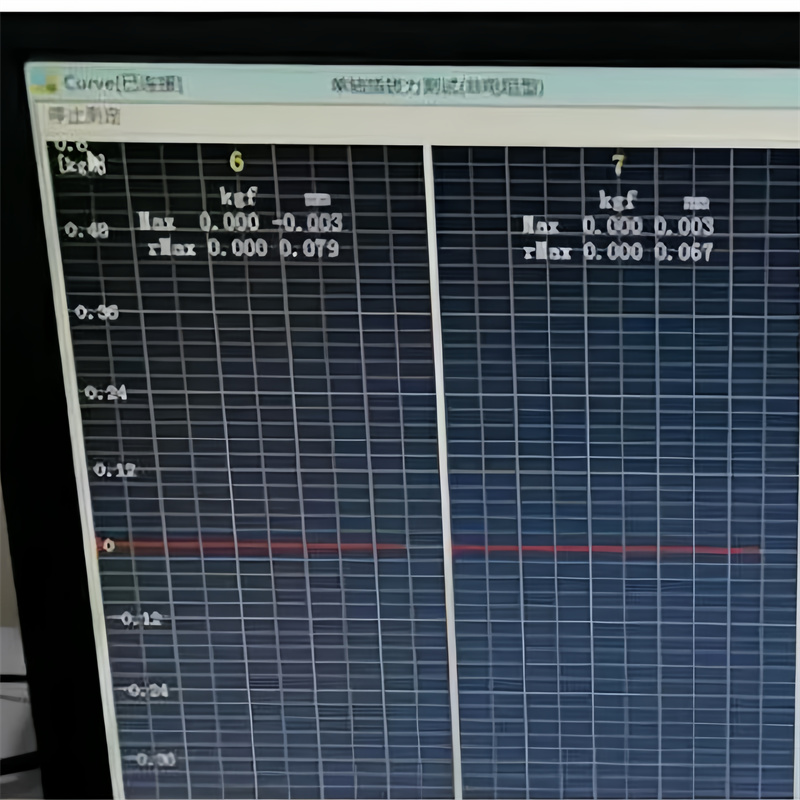

3、同时显示荷重-行程曲线图及寿命曲线图。
4、自动荷重零点检出，并可设定原点检出荷重值。
5、荷重单位显示:N、1b、g、您就可自由切换。
6、电脑插拔力试验机采用高钢性结构设计，搭配松下伺服马达，长时间使用下能确保精度，适合一般引张压缩测试及插拔力寿命测试。
1、Product Features: All test parameters for the telephone plug-out force tester are computer-controlled and can be saved. Users can configure settings via drop-down menus or input data directly, including test category, measurement direction, load range, stroke range, stroke origin position, stroke origin detection, measurement speed, total measurement count, pause time, waiting position per cycle, and air compression cycles.
2、The system can store and print graphics (load-travel curve, load-decay-life curve, test report). Its overload protection function ensures the load element remains undamaged.
3、The load-travel curve and the life curve are displayed simultaneously.
4、Automatic detection of load zero point with preset origin detection load value.
5、Load unit display: N, 1b, g – you can freely switch between them.
6、The computerized plug-out force tester features a high-rigidity structural design with Panasonic servo motors, ensuring precision even during prolonged operation. It is ideal for standard tensile/compression tests and plug-out force lifespan evaluations.
测试项目
1.连接器单孔插拔试验2.连接器插拔寿命试验3.可测连接器接通阻抗
4.连接器Normal Force测试
5.连接器整排插拔试验
6.连接器单Pin与塑胶保持力试验
Test items:
1.Single-pin connector insertion/extraction test
2.Connector insertion/extraction life test
3.Measurable connector contact impedance
4.Connector normal force test
5.Connector full-row insertion/extraction test
6. Single-pin connector and plastic retention force test
技术参数
1、测定荷重：5kg、10kg、20Kg、50kg(选配)
2、最小分解能力：0.001Kg
3、测定高度：150mm
4、最小微调距离：0.01mm
5、测定速度范围：0-300mm/min
6、x轴移动范围：0-75mm
7、Y轴移动范围：0-75mm
8、阻抗范围：0-3000毫欧
9、传动机构：滚珠丝杆
10、驱动马达：超静音马达
11、外观尺寸：420X280X960mm
12、重量：约67Kg
13、电源：220V/50Hz
Technical Specifications
1. Load capacity: 5kg, 10kg, 20kg, 50kg (optional)
2. Minimum load capacity: 0.001kg
3. Measurement height: 150mm
4. Minimum adjustment range: 0.01mm
5. Measurement speed range: 0-300mm/min
6. X-axis movement range: 0-75mm
7. Y-axis movement range: 0-75mm
8. Impedance range: 0-3000mΩ
9. Drive mechanism: Ball screw
10. Drive motor: Ultra-quiet motor
11. Dimensions: 420x280x960mm
12. Weight: Approximately 67kg
13. Power supply: 220V/50Hz
