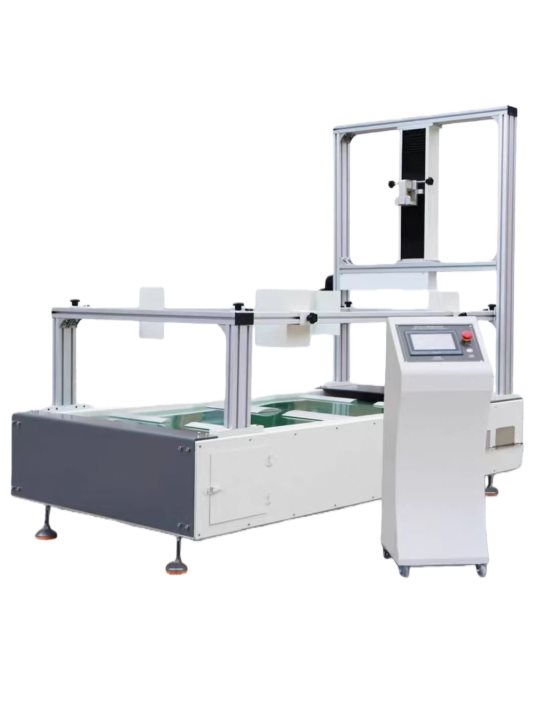

箱包行走颠簸试验机
箱包行走颠簸试验机
皮箱行走路况试验机用于附有轮子的旅行箱、旅行包、轮子、轮轴的行进间试验，可测试轮材料的耐磨性及箱子的整体结构有无破坏情形及变形，其测试方法在箱包中加载适量的负荷，利用传送带式行走试验机的传送带行进时砂布、测试颠簸板与试样走轮相互间的摩擦和撞击，对试样产生冲击振荡和磨损，模拟箱包行走时的使用状况作连续行走测试，其试验的结果可供作改进的参考。符合标准:QB/T2920-2007箱包行走试验方法 B法
The suitcase walking condition tester is designed for evaluating wheeled luggage, travel bags, wheels, and wheel axles during movement. It assesses the wear resistance of wheel materials and detects structural damage or deformation. The testing method involves applying controlled loads to the luggage. Using a conveyor belt system, the sandpaper and test bump plate interact with the sample wheels through friction and impact, generating shock oscillations and wear to simulate real-world usage conditions. The results provide valuable references for design improvements. Standard compliance: QB/T2920-2007 Luggage Walking Test Method-Method B.
1、 试验速度KM: 0~5
1. Test speed (KM): 0~5
2、时间记忆: 可显示0~99999小时，停电记忆型
2. Time Memory: Capable of displaying 0 to 99999 hours, with power failure memory function
3、颠坡板：5MM/12片/不对称配置
3. Inclined slope plate: 5MM/12 pieces/asymmetric configuration
4、皮带尺寸: 390*82CM(瑞士HABASIT)
4. Belt dimensions: 390*82 cm (Swiss brand HABASIT)
5、辅助功能: 箱包角度调整装置(具设定时间自动停机)
5. Auxiliary functions: Bag angle adjustment device (with preset time automatic shutdown)
6、电机: 交流变频电机
6. Motor: AC Inverter Motor
7、传动方式: 电动传动
7. Transmission method: Electric transmission
8、试验编程: 1~10段
8. Test programming: Sections 1-10
9、暂停时间: 999分可设定
9. Pause time: 999 minutes can be set
10、单段运行时间: 9999时可设定
10. Single-run time: Settable to 9999 hours
11、运行荷载: 50KG
