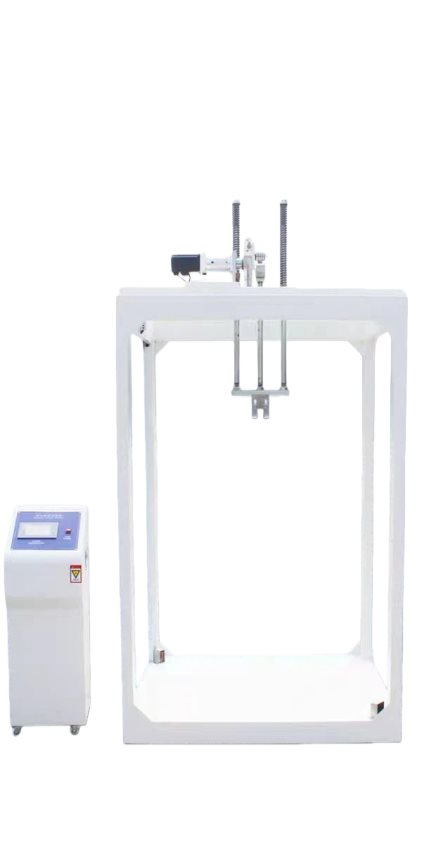

旅行箱震荡试验机

旅行箱震荡试验机

箱包振荡试验机用于测试旅行箱提把、车缝线及整体结构的耐振荡冲击试验。方法是在对象上装载规定的荷重，以每分钟30次的速度冲击及4英寸的行程对试件做2500次试验，试验结果可作为品质改进的参考。符合标准箱包振荡试验机符合美国SAMSONITE标准。

The suitcase oscillation tester is designed to evaluate the shock resistance of suitcase handles, stitching, and structural integrity. It operates by applying a specified load to the specimen, which undergoes 2,500 impact cycles at 30 cycles per minute with a 4-inch stroke. The test results provide valuable insights for quality enhancement. This equipment complies with the American SAMSONITE standard.

二、仪器参数 Instrument Parameters

1、冲击高度:4英寸(0-6英寸)可调

1. Impact height: 4 inches (adjustable range: 0-6 inches)

2、振动方式:弹簧式1.79KG/MM;2、

2. Vibration mode: Spring type, 1.79 kg/mm²; 2.

3、测试速度:5-50CMP可调;

3. Testing speed: adjustable from 5 to 50 CMP;

4、计数器:LCD 0-999999次6位显示

4. Counter: 6-digit display for 0-999999 counts on LCD

5、机台尺寸:1400X1200X2500MM(长X宽X高)

5. Machine dimensions: 1400X1200X2500mm (length×width×height)

6、重量:约390KG

6. Weight: approximately 390KG

7、额定电压:AC~220V、50HZ;

7. Rated voltage: AC 220V,50Hz;
