点划线寿命试验机

微信图片_20260511151935_128_24

微信图片_20260511151950_130_24

微信图片_20260511151922_127_24

未标题-1

微信图片_20260511153704_131_24

넳 넲

摩擦系数测试仪

简要描述：

详细介绍

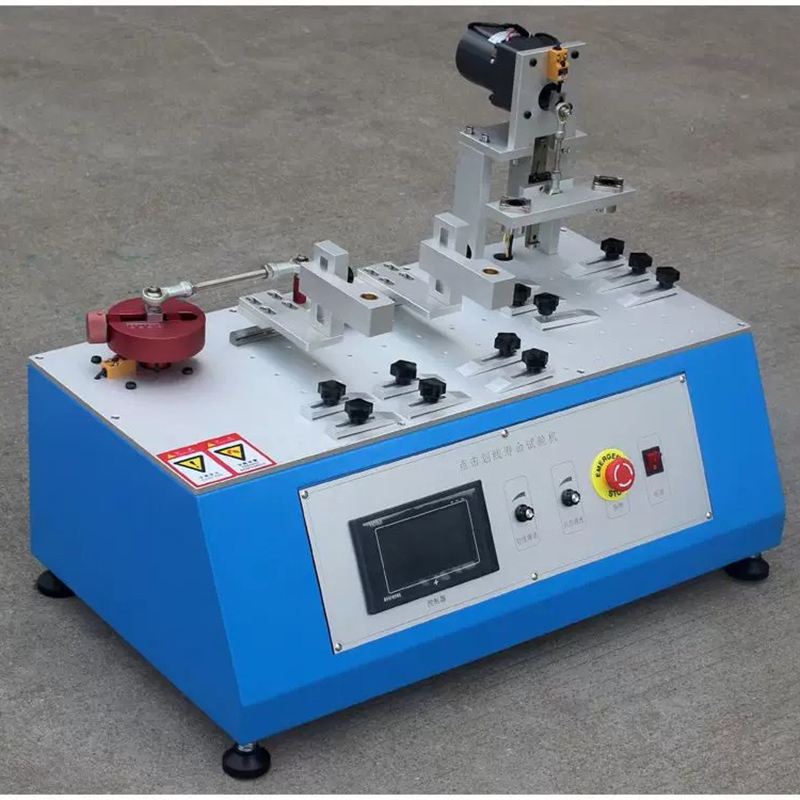

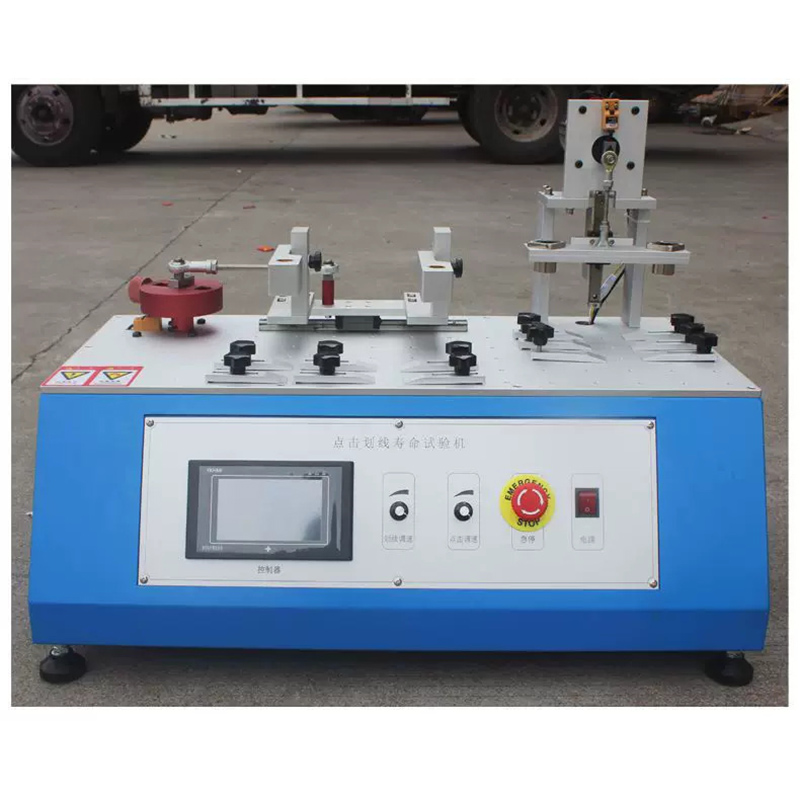

摩擦系数测试仪

适用于手机、平板电脑、导航仪等电容屏及电阻屏的点击及划线寿命测试荷重砝码500G，200G,100G,50G,25G,10G以手写笔或同等材质橡胶测头在触摸屏上点击或划线一定次数下判别其耐点击划线之效果。

This test is designed to evaluate the durability of capacitive and resistive touchscreens for devices like smartphones, tablets, and navigation systems. It measures the lifespan of touch inputs (clicks and swipes) using weights of 500G,200G,100G,50G,25G, and 10G. The test involves using a stylus or a rubber probe of similar material to perform a set number of clicks or swipes on the touchscreen, thereby assessing its resistance to repeated touch and swipe operations.

特点feature：

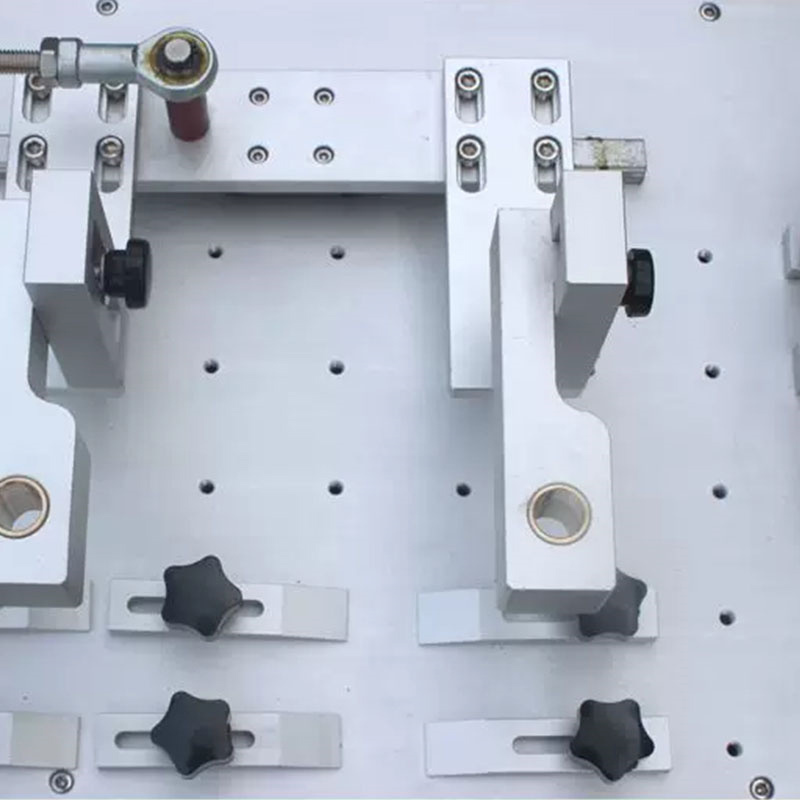

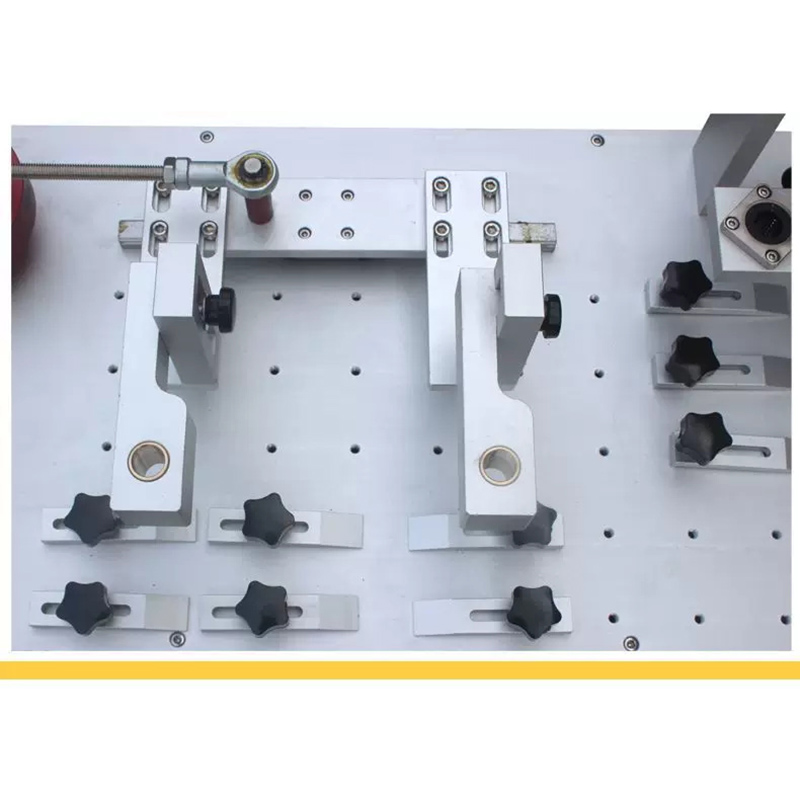

1、多功能夹持方式，让您的试验准确而富有成效。

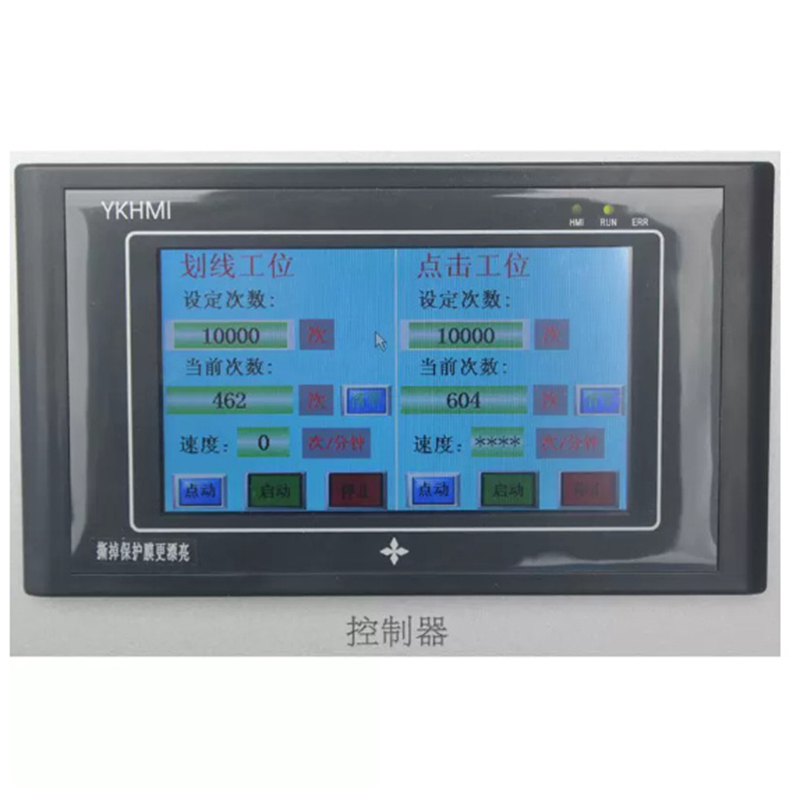

2、LED数显式设定计数器，或选配液晶触摸屏控制，可任意设定测试次数，直观实际测试次数。

3、直观化控制，操作简单。

1. Multifunctional clamping mechanism ensures precise and productive experimental results.

2. The LED digital display counter or optional LCD touchscreen control allows flexible testing cycle settings with real-time monitoring of actual test counts.

3. Intuitive control with simple operation.

技术参数Technical Parameters：

试验荷重(G):500、200、100、50、25、10G;

测试次数:0-99999999次:

测试速度:0~80次/分钟

机台尺寸:750X450X480MM;

电源:1Ф,220V,5A 或指定电

重量:约55KG;

标配:测试夹具;

Test load (G): 500,200,100,50,25,10G;

Test count: 0-99999999 times:

Test speed: 0-80 cycles/min;

Machine dimensions: 750x450x480mm;

Power supply: 1Φ,220V,5A or specified;

Weight: approximately 55kg;

Standard equipment: test fixture.
