纸箱抗压试验机
纸箱抗压试验机

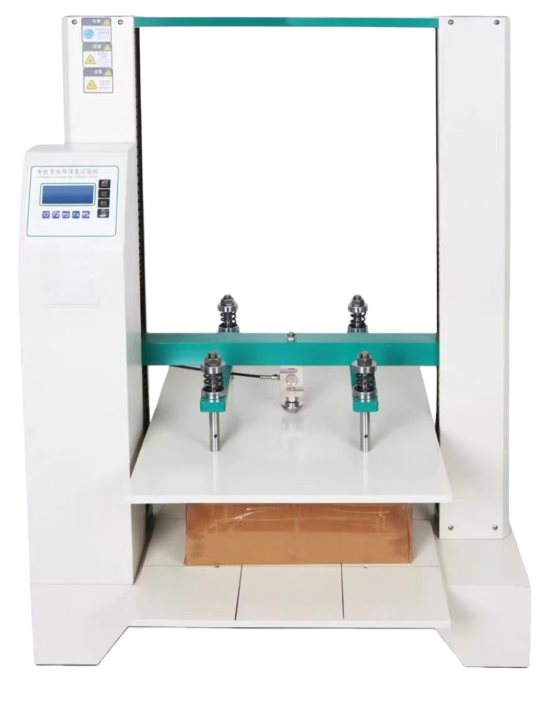

智能型纸箱抗压试验机 Intelligent Box Pressure Testing Machine
是瓦楞纸箱抗压强度性能检测的基本仪器(即包装检测设备)适用于各类瓦楞纸箱的抗压强度试验、达标试验和堆码强度试验
采用标准
GB/T4857.4-92包装运输包装件压力试验方法GB/T4857.3-92包装 运输包装件静载荷堆码试验方法心
This is the fundamental instrument for evaluating the compressive strength of corrugated boxes (i.e., packaging testing equipment), applicable to various types of corrugated boxes for compressive strength tests, compliance tests, and stacking strength tests. It adopts the following standards: GB/T4857.4-92 "Test Method for Pressure of Packaging and Transportation Packaging Items" and GB/T4857.3-92 "Test Method for Static Load Stacking of Packaging and Transportation Packaging Items".
产品特点: Product Features
1、 测试完自动回位，自动判断压溃力并自动保存测试数据
1. After testing, the system automatically resets, determines the crushing force, and saves the test data.
2、三种可设置的速度，全中文液晶显示操作界面，单位可选
2. Three adjustable speeds, fully Chinese LCD display interface, with selectable units
3、可输入相关数据并自动换算抗压强度，自带包装堆码测试功能;可直接设定力量、时间，测试完成后自动停机。
3. Capable of inputting relevant data and automatically converting compressive strength, with built-in packaging stacking test function; allows direct setting of force and time, with automatic shutdown upon completion of testing.
4、三种工作模式:强度试验:可测量箱体的最大抗压力;定值试验:可根据设定的压力来检测箱体的整体性能;堆码试验:按国家标准规定要求，可进行12小时，24小时等不同条件的堆码试验。
4. Three working modes: Strength test: Measures the maximum compressive strength of the box; Set-value test: Evaluates the overall performance of the box based on preset pressure; Stack test: Per national standard requirements, it can conduct stack tests under different conditions such as 12 hours, 24 hours, etc.
主要技术参数: Key technical specifications:
1. 容量选择:默认1T、可备注2T(可依据客户要求定做);准确等级:1级;控制方式:微电脑控制(可选购计算机操作系统)
1. Capacity selection: Default 1TB, customizable 2TB (customizable based on customer requirements); Accuracy level: Level 1; Control method: Microcomputer control (operating system optional)
2.显示方式:电子式液晶屏显示(或计算机显示):
2. Display method: Electronic LCD screen (or computer display):
3.力量单位切换:KGF，GF，N，KN，LBF;
3. Force unit conversion: KGF, GF, N, KN, LBF;
4.应力单位切换:MPA，KPA，KGF/CM2，LBF/IN2;
4. Stress unit conversion: MPA, KPA, KGF/CM², LBF/IN²;
5.位移单位:MM，CM，IN;
5. Displacement units: mm, cm, in;
6.力量分辨率:1/100000;
6. Power resolution: 1/100000;
7.显示分辨率:0.001N;
7. Display resolution: 0.001N;
8.机台行程:600 800 1000 12001500:
8. Machine travel distance: 600,800,1000,1200,1500:
9.压板尺寸:600*600、800*800、1000*1000、1200*1200、1500*1500，
可非标定制;
9. Plate sizes: 600×600,800×800,1000×1000,1200×1200,1500×1500, with custom non-standard options available.
1. 试验速度:5MM~100MM/MIN可任意输入速度;软件功能:中英文语言互换停机模式:超载停机、试件破坏自动停机、上下限设定自动停机
1. Test speed: 5MM~100MM/MIN (speed can be input arbitrarily); Software functions: Chinese-English language switching; Shutdown modes: Overload shutdown, automatic shutdown upon specimen damage, automatic shutdown with upper/lower limit setting
2. 安全装置:超载保护，限位元保护装置;
2. afety devices: overload protection, limit switch protection device;
3. 机台动力:AC变频马达驱动控制器
3.Machine Power: AC Frequency Conversion Motor Drive Controller
4. 机械系统:高精度滚珠丝杆;
4.Mechanical system: high precision ball screw;
5. 电源:AC220V/50HZ~60HZ4A;
5.source, current source, electric source, power pack, electrical source AC220V 50Hz 60Hz 4A
6. 机台重量:600*600*600纸箱抗压试验机约280KG，型号不同
重量不同，具体请咨询客服经理;
6.Machine weight: The 600*600*600 carton compression tester weighs approximately 280KG, with varying weights depending on the model. For specific details, please contact the customer service manager.
7. 性能特点:可设定百分比断裂值,自动停机，可进入菜单选择4段不同速度，可20次结果，可以查看所有测试结果平均值及单次结果
7.Performance features: Setable percentage break point, automatic shutdown, selectable from 4 speed segments via menu, supports 20 test cycles, and provides viewable average results with single-cycle data
