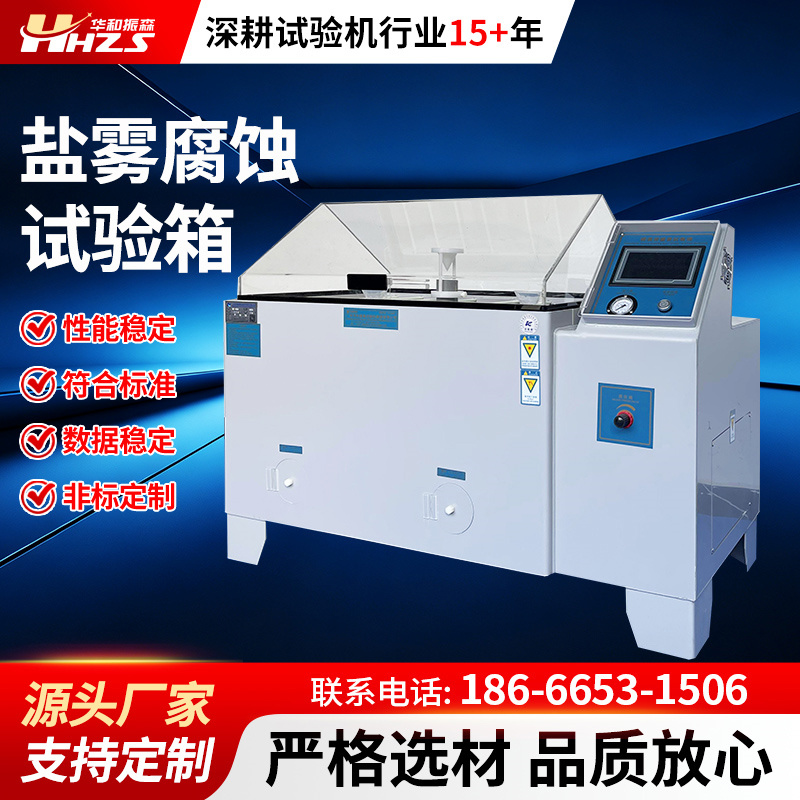

盐雾试验机
盐雾试验机
用途Use：盐水喷雾试验机，乃针对各种材质表面处理，包含涂料、电镀、有机及无机皮膜，阳极处理，防锈油等防腐处理后测试其耐腐蚀性，从而确立产品的质量。
The salt spray test chamber is designed for testing the corrosion resistance of various material surface treatments, including coatings, electroplating, organic and inorganic films, anodizing, rust-preventive oils, and other anti-corrosion treatments, thereby verifying product quality.
特点Feature
1.采用新智能型盐雾试验机采用印刷电路板解决了老款盐雾试验机继电器电路容易出现线路故障的问题。
2.温度传感器采用原装日本进口数字式传感芯片，耐用十年不会产生漂移，老款采用PT-100和K型，随着使用年限的延长传感器多数会不准，如果没有采用校准的话，会对试验产生很大危害。
3.新款盐雾试验机一体集成了可程式，连续/间隔喷雾，手动/自动模式。在此多种模式的集合下基本上可满足现在针对盐雾试验机的所有标准，让客户不用为盐雾试验机的选型而烦恼。
1. The new intelligent salt spray test chamber incorporates a printed circuit board (PCB), addressing the common line failure issue associated with the relay-based circuitry of legacy models.
2. Equipped with an original Japanese-imported digital temperature sensor chip, this unit delivers 10 years of stable operation without signal drift. By contrast, legacy models utilizing PT-100 or K-type sensors typically experience accuracy degradation over extended service life; uncalibrated units of this type pose significant risks to test validity.
3.The new test chamber continuous/intermittent spraying functions, and manual/automatic operation modes. This multi-mode design enables compliance with nearly all current industry standards for salt spray testing, eliminating customer concerns related to model selection.
技术参数：Technical Parameters
|
型号 model |
60型 |
90型 |
120型 |
160型 |
|
|
实验室尺寸 laboratory size |
60*45*40cm |
90*60*50cm |
120*100*50cm |
160*100*50cm |
|
|
整机尺寸 Overall dimensions |
107*72*105cm |
141*85*115cm |
190*120*140cm |
230*130*140cm |
|
|
实验室温度 Laboratory temperature |
盐水试验法（NSS ACSS）35℃±1℃/耐腐蚀试验法（CASS）50℃±1℃ NSS ACSS (35℃±1℃) and CASS (50℃±1℃) corrosion resistance tests |
||||
|
压力桶温度 Pressure tank temperature |
盐水试验法（NSS ACSS）47℃±1℃/耐腐蚀试验法（CASS）63℃±1℃ Salt Water Test (NSS ACSS) at 47℃±1℃ and Corrosion Resistance Test (CASS) at 63℃±1℃ |
||||
|
实验室容量 Laboratory capacity |
270L |
480L |
800L |
1440L |
|
|
盐水箱容量 Saltwater tank capacity |
35L |
60L |
80L |
100L |
|
|
部分标准 Some standards |
GB/T 10125-2021人造气氛腐蚀试验盐雾试验、 GB/T 10125-2021 Salt Spray Test for Corrosion in Artificial Atmosphere |
||||
|
GB/T 12085.4-1989光学和光学仪器环境试验方法盐雾试验 GB/T 12085.4-1989 Environmental test method for optical and optical instruments Salt spray test |
|||||
|
GB/T 12967.3-1991铝及铝合金阳极氧化 氧化膜的铜加速醋酸盐雾试验（CASS试验） GB/T 12967.3-1991 Anodizing of aluminium and aluminium alloys. Copper accelerated acetate salt spray test (CASS test) |
|||||
|
GB/T 1771-2007色漆和清漆 耐中性盐雾性能的测定 Determination of the resistance to neutral salt spray of color paint and varnish |
|||||
|
GB/T 2423.17-2008电工电子产品基本环境试验规程试验Ka：盐雾试验方法 GB/T 2423.17-2008 Basic environmental test procedures for electrical and electronic products Test Ka: Salt spray test method |
|||||
|
GB/T 2423.18-2000电工电子产品环境试验第二部分：试验--试验Kb：盐雾，交变（氯化钠溶液） GB/T 2423.18-2000 Environmental test for electrical and electronic products Part 2: Test-Kb: Salt spray, alternating (sodium chloride solution) |
|||||
|
GB/T 5170.8-2017电工电子产品环境试验设备基本参数检定方法盐雾试验设备 GB/T 5170.8-2017 Basic parameters of environmental test equipment for electrical and electronic products – Verification method for salt spray test equipment |
|||||
|
QB-T3826-1999轻工产品金属镀层和化学处理层的耐腐蚀试验方法中性盐雾试验(NSS法） QB-T3826-1999 Corrosion resistance test method for metal coatings and chemical treatment layers of light industrial products: Neutral salt spray test (NSS method) |
|||||
|
QB-T3827-1999轻工产品金属镀层和化学处理层的耐腐蚀试验方法乙酸盐雾试验(ASS法） QB-T3827-1999 Corrosion resistance test method for metal coatings and chemical treatment layers of light industrial products: Acetate salt spray test (ASS method) |
|||||
|
QB-T3828-1999轻工产品金属镀层和化学处理层的耐腐蚀试验方法铜盐加速乙酸盐雾试验（CASS）法 QB-T3828-1999 Corrosion resistance test method for metal coatings and chemical treatment layers of light industrial products: Copper salt accelerated acetate salt spray test (CASS) |
|||||
|
国际标准 international standard |
ISO1456/3768/3770;IEC682-11;ASTMB117/B287;CNS3627; MILSTD202E-101D/810C-509; DIN40046/50021;JISD-0201/H-8681/BS1224/3900 |
||||
|
喷雾 atomizing |
喷塔 spray tower |
特制锥形分散器，可调整喷雾之大小，可使雾气均匀落在试件上 A specially designed conical disperser with adjustable spray size ensures uniform mist distribution over the specimen. |
|||
|
喷嘴 spray nozzle |
精密玻璃喷嘴 precision glass nozzle |
||||
|
喷雾类型 Atomizing type |
中性，酸性，碱性，铜加速盐雾试验类型任选，也能满足自定义类型，但所设参数必须符合盐雾试验机相关标准要求，可在编程控制系统中定义更多试验类型。 Neutral, acidic, alkaline, and copper-accelerated salt spray test types are optional and can be customized, provided the parameters comply with the relevant standards for the salt spray tester. Additional test types can be defined in the programming control system |
||||
|
除雾方式 de-mist method |
借空气挤压将雾气排出，箱盖设计锥形设计，形成顶角，有利于盐雾产生凝露不直接滴落在试件上，保证试验精确度。 The air pressure is used to expel the fog, and the box cover is designed conically to form a top angle, which is conducive to the condensation of salt spray and does not directly drop on the test piece, ensuring the accuracy of the test. |
||||
|
盐水浓度 salinity |
氯化钠溶液浓度5%，或者氯化钠溶液浓度5%中添加冰乙酸使得溶液成酸性，亦或者氯化钠溶液浓度5%中每升添加0.26克氯化铜。 5% sodium chloride solution, or 5% sodium chloride solution with added glacial acetic acid to make the solution acidic, or 5% sodium chloride solution with 0.26 grams of copper chloride per liter. |
||||
|
压缩空气压力 Compressed air pressure |
1.00±0.01kgf/cm2 |
||||
|
喷雾量 spray volume |
1.0—2.0ml/80cm2/h（至少收集16小时，取其平均值） 1.0—2.0ml/80cm2/h (collect for at least 16 hours and take the average) |
||||
|
实验室相对湿度 relative humidity of laboratory |
85%以上 more than85% |
||||
|
喷雾方式 spray method |
连续试验，间歇性循环实验，程序控制多段实验。 Continuous test, intermittent cycle test, program control multi-stage test. |
||||
|
电源 power pack |
AC220V |
||||
