工业烤箱

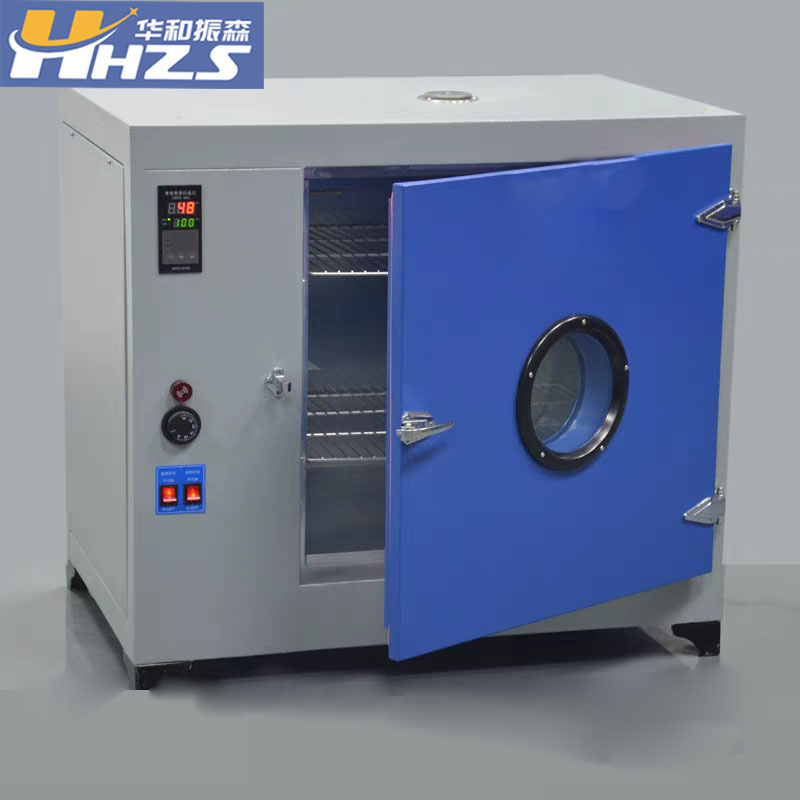

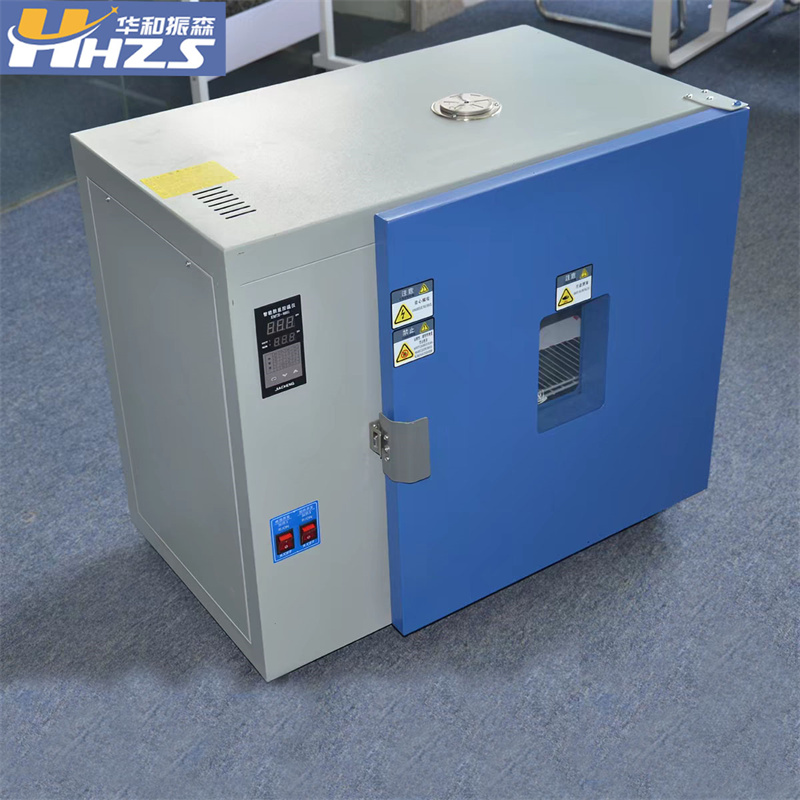

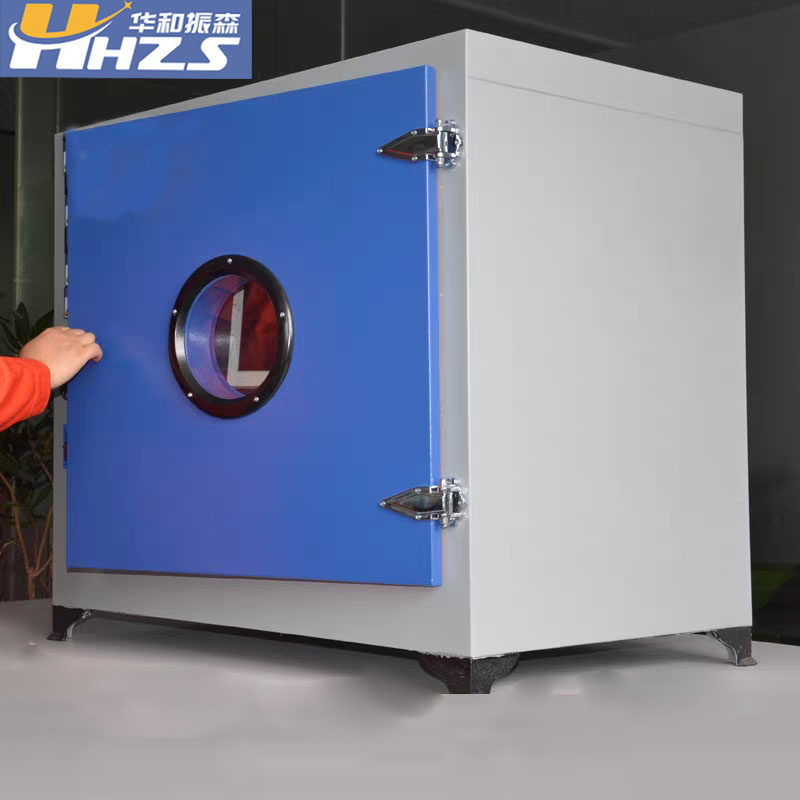

电热鼓风干燥箱

用途use：

电热鼓风干燥箱是采用电加热方式进行鼓风循环干燥试验的设备，主要用来干燥样品，也可以提供实验所需的温度环境，广泛应用于化工、医药、铸造、汽车、食品、机械等各个行业。

The electric heating air-drying oven is a kind of equipment which is used for air-drying test by electric heating. It is mainly used for drying samples and providing the temperature environment needed for experiments. It is widely used in chemical industry, medicine, casting, automobile, food, machinery and other industries.

特点feature

1.箱体内均采用冷轧板弧氢焊制作而成，体外采用优质钢板，造型美观，新颖。

2.采用数字显示的温度控制器，控温精确可靠。

3.热风循环系统由能在高温下连续运转的风机和合适风道组成。提高工作室内温度均匀。

4顶上有一个出气孔,用于排出水分和废气.

5.位于机器底部有一个吸气孔,可从吸气孔进入所需的气体

6.发热丝安装在底部,发热迅速

1. The box body is constructed with cold-rolled steel sheets and arc hydrogen welding, while the exterior features high-quality steel plates, resulting in an aesthetically pleasing and innovative design.

2. The digital display temperature controller ensures precise and reliable temperature control.

3. The hot air circulation system consists of a fan capable of continuous operation at high temperatures and appropriate air ducts, which enhances temperature uniformity within the working chamber.

4. There is an exhaust vent on the top for draining water and exhaust gases.

5. An air intake hole is located at the bottom of the machine, through which the required gas can be introduced. 6. The heating element is installed at the bottom, ensuring rapid heating.

技术参数Technical  Parameters：

1.电源电压220V

2.输入功率1600W

3.温度分辩率/波动度1度/2度

4.内胆尺寸550*550*450

5.外形尺寸90*66*82

6.搁板2层

7.工作室材料冷轧板

8.控温范围RT+10~300

1. Power supply voltage: 220V

2. Input power: 1600W

3. Temperature resolution/fluctuation: 1°C/2°C

4. Inner tank dimensions: 550*550*450

5. External dimensions: 90*66*826.2-tier shelf

7. Studio material: Cold-rolled steel plate

 8. Temperature control range: RT+10~300℃
