淋雨试验机
特点Feature

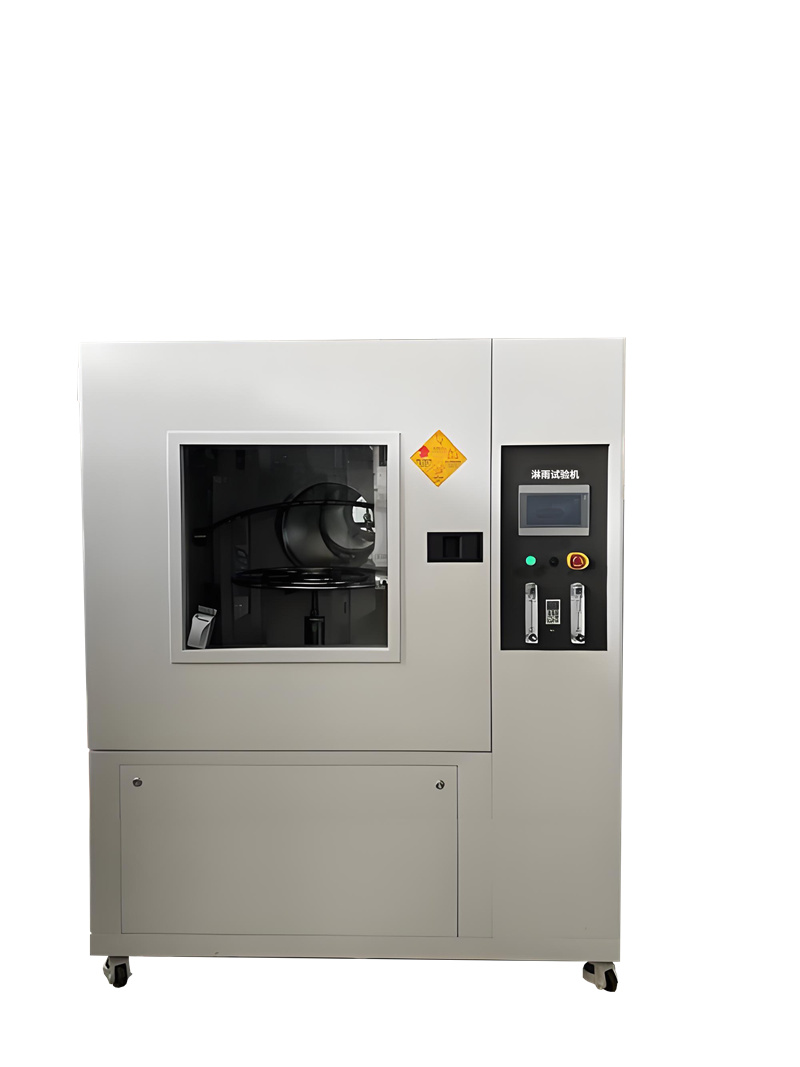

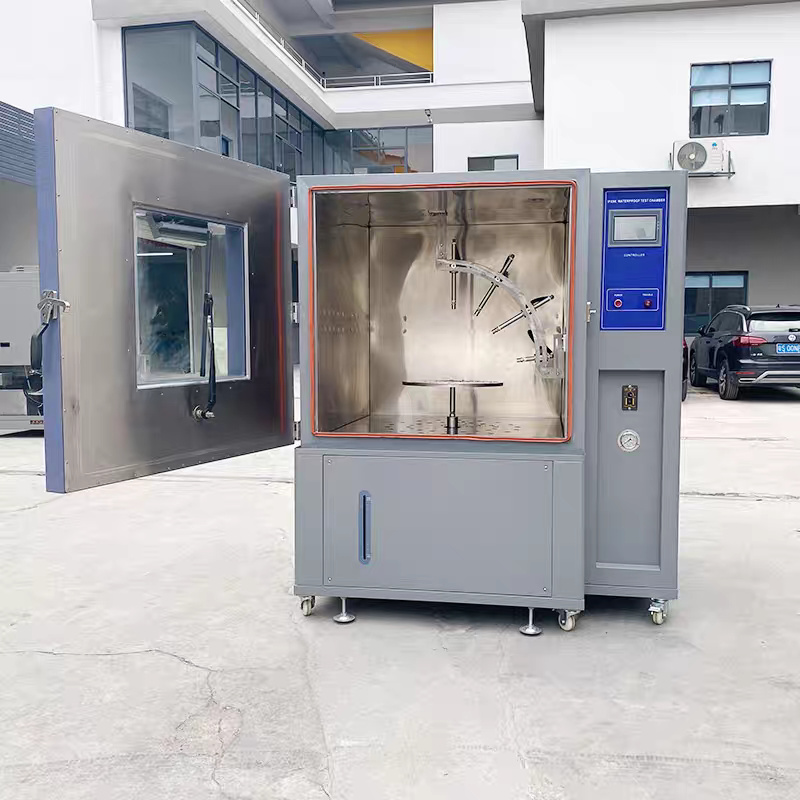

用于确定电工、电子产品对淋雨环境的适应性，箱式淋雨试验箱适用于测试汽车灯具、雨刷、防水条带、机车仪表及低压电器外壳防护的防水性能。,不锈钢机壳经久耐用；同服马达精准控制角度；直观的操作界面；大视窗带水刮。
The chamber-type rain test chamber is designed to evaluate the rain resistance of electrical and electronic products. It is particularly suitable for testing the waterproof performance of automotive lamps, wipers, waterproof strips, locomotive instruments, and low-voltage electrical enclosure protection. The stainless steel casing ensures durability, while the synchronous motor provides precise angle control. The intuitive operation interface and large viewing window with water scraper further enhance usability.
|
型号Model |
KE-IPX56(1-8) |
KE-IPX56(1-8) |
KE-IPX56(1-8) |
|
|
|
尺寸 |
测试室尺寸 |
80×80×80 |
100×100×100 |
120×120×120 |
手持式IPX3-4装置 |
|
DimensionoftestcabinetW×D×Hcm |
|||||
|
OveralldmensionsW×D×Hcm |
142*108*165 |
162*128*185 |
182*148*205 |
/ |
|
|
性能 |
喷水环前径 |
30cm |
30cm |
30cm |
尺寸可定 |
|
Frontdameterofwatersprayrng |
|||||
|
喷水孔径 |
0.4mm(或or0.8mm) |
||||
|
Waternozzleaperture |
|||||
|
喷水孔径间距 |
50mm |
||||
|
Spacingofwaternozzleapertures |
|||||
|
喷水个数 |
40个 |
||||
|
Numberofwatersprayingnozzles |
|||||
|
每孔平均水流速度 |
0.07L/min(或or0.6L/min) |
||||
|
Averaoeflowvelootypernozze |
|||||
|
喷水管管径 |
16mm |
||||
|
watersprayingnozzleaperture |
|||||
|

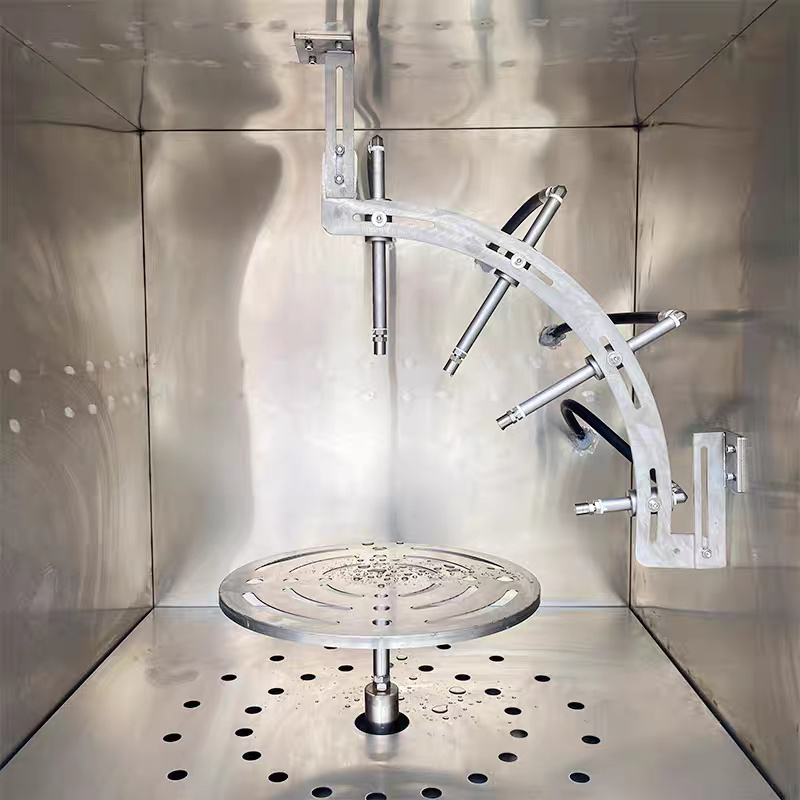

摆管摆角幅度 |
0~±180可调Adjustable |
||||
|
Swngangleampltudeofswngtube |
|||||
|
喷水压力 |
80-100pa可调Adjustable |
||||
|
Watersprayingpressure |
|||||
|
摆管最大摆幅 |
最大Maximum270 |
||||
|
Maximumswingingmagnitudeofswingtube |
|||||
|
喷水水压 |
0.12~0.15MPa |
||||
|
Watersprayingpressure |
|||||
|
|
喷水管摆动速度 |
IP315次/min:IP410次/Times(其他等级可调adjustableatotherlevels) |
|||
|
Swngngspeedofswngtube |
|||||
|
样品架转速 |
1~4r/min可调Adjustable(产品可通电试验power-ontestisavailable) |
||||
|
Rotationalspeedofsamplehokder |
|||||
|
试验时间Testtime |
1-999,999min(可设定programmable) |
||||
|
材料 |
材质 |
外箱：防锈处理冷轧钢板烤漆内箱：SUS=304或SUS=316不锈钢板 |
|||
|
Texture |
Outercabnetcod-roledsteepfatewithanti-nusttreatrertardbekedfnsh,mmercabinetSUS=304crSUS=316stanlesssteelplate |
||||
|
绝缘材料 |
硬质聚氨酯发泡沫料(带阻燃剂) |
||||
|
Insuatngmaterials |
Rgidpolyurethanefoemmatera(withflameretardanagent) |
||||
|
电控 |
控制器 |
进口台通系列7”触摸式淋雨水试验箱专用仪表 |
|||
|
Controler |
lmportedTaitongseries7"touchscreennstrumentspeciallydesignedforwatersprayandsplashchamber |
||||
|
电器 |
南方水泵，台达变频器、三菱伺服电机 |
||||
|
Electricalapparatus |
Nanfangwaterpump,Deltafrequencyconverter,Mitsubishiservomotor |
||||
|
故障报警 |
水泵过流、过热、缺水、漏电保护、欠相 |
||||
|
Fauttalarm |
Waterpumpover-cument,oveheating,watershortage,leakageprotectonandunder-phase |
||||
|
水质 |
纯净水或去离子水 |
||||
|
Waterquaity |
Purfedvaterordeionzedwater |
||||
|
电源 |
220VAc1φ2W50/60Hz |
380VAc3φ4W50/60Hz |
|||
|
Powersuppy |
|||||
|
最大电流(A) |
5A |
6A |
8A |
||
|
Max.CUment(a)AC220V |
|||||
