插拔力试验机

插拔力试验机

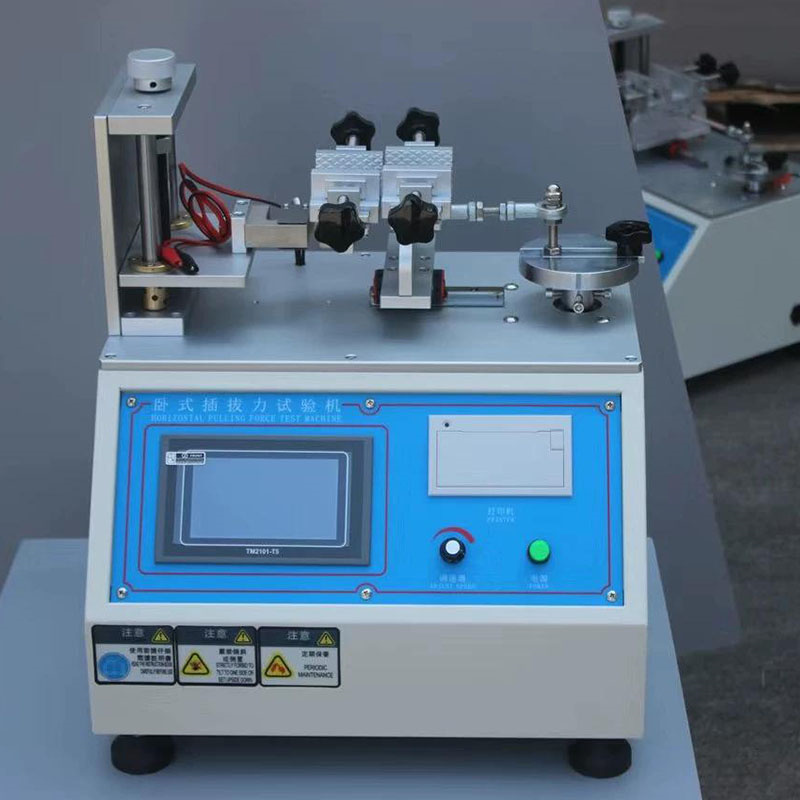

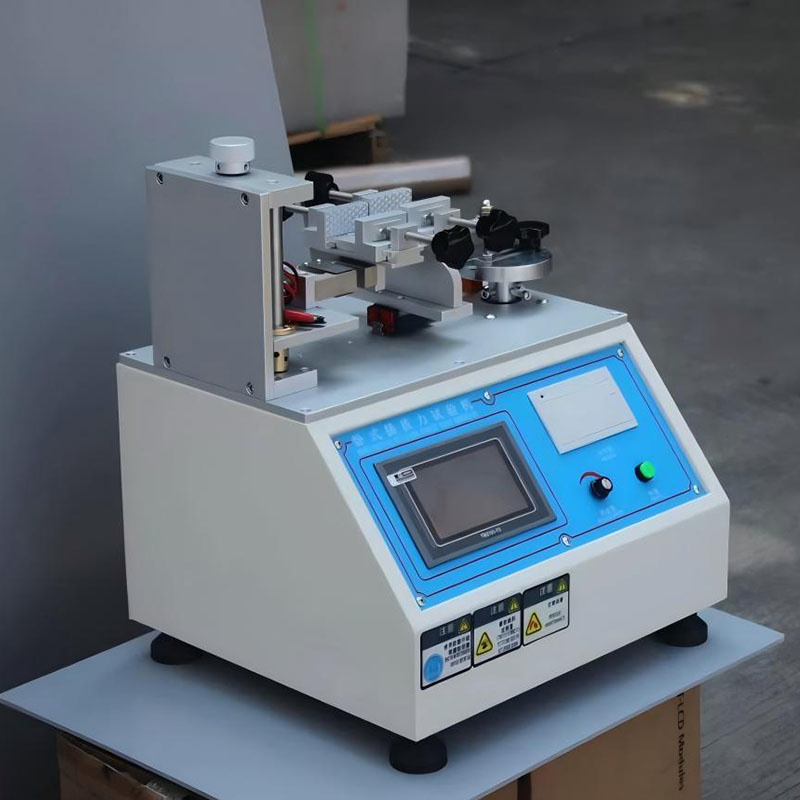

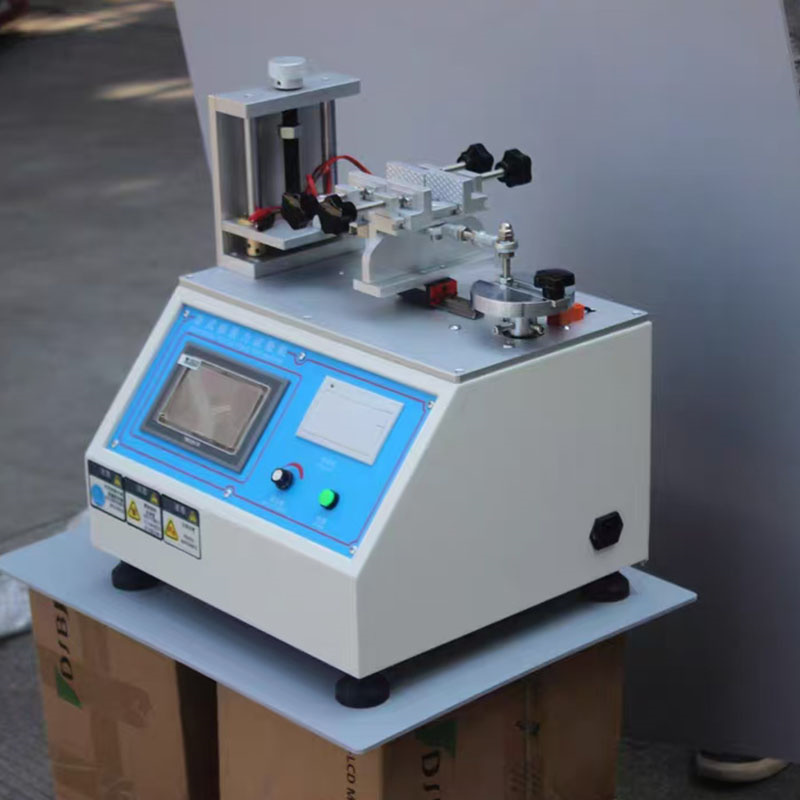

pull-out force tester

产品参数: Product Parameter
1、具有超载荷重设定自动停止报警功能
1. Features automatic overload stop alarm function with preset load capacity
2、具有自动保存功能，最大可自动存十个点，并求得平均值
2. Features automatic saving, capable of saving up to ten points and calculating the average
3、采用列表方式，列测保存的测试数据
3. Use a list format to save the test data
4、具有管理员口令用户可以修改开机密码。
4. Admin users can change the boot password.
5、采用软件较准荷重值;
5. The software is used to compare the value of the accurate load;
6.采用全中文提示设定内部功能，操作方便、简单;
6. The system features fully Chinese prompts for internal functions, ensuring user-friendly and straightforward operation.
7、次数范围:0~999999
7. Range: 0 to 999999
8-传动方式:旋转偏心轮;
8. Transmission mode: rotating eccentric wheel;
9、显示方式:大屏幕LCD实时显示
9. Display mode: Real-time display on large LCD screen
10、插拔力范围:0~50KG;
10. Insertion and removal force range: 0~50KG;
11、最小插拔力解晰度:0.01KG
11. Minimum insertion and removal force resolution: 0.01 kg
12、行程调节范例:0~60MM;
12. Travel adjustment range: 0-60 mm;
13、测试速度:10~60(数字显示)都
13. Test speed: 10–60 (digital display)
14、两种单位转换:N、水G、IB;
14. Two unit conversions: N (nettoness), G (gram), IB (international unit).
15、机台尺寸:550(D)*470(W)*450(H)MM;
15. Machine dimensions：550(D)*470(W)*450(H)MM;
16、工作电压:单相220V
16. Operating voltage: 220V single-phase
17、主电路熔断体:2A;
17. Main circuit fuse: 2A;
