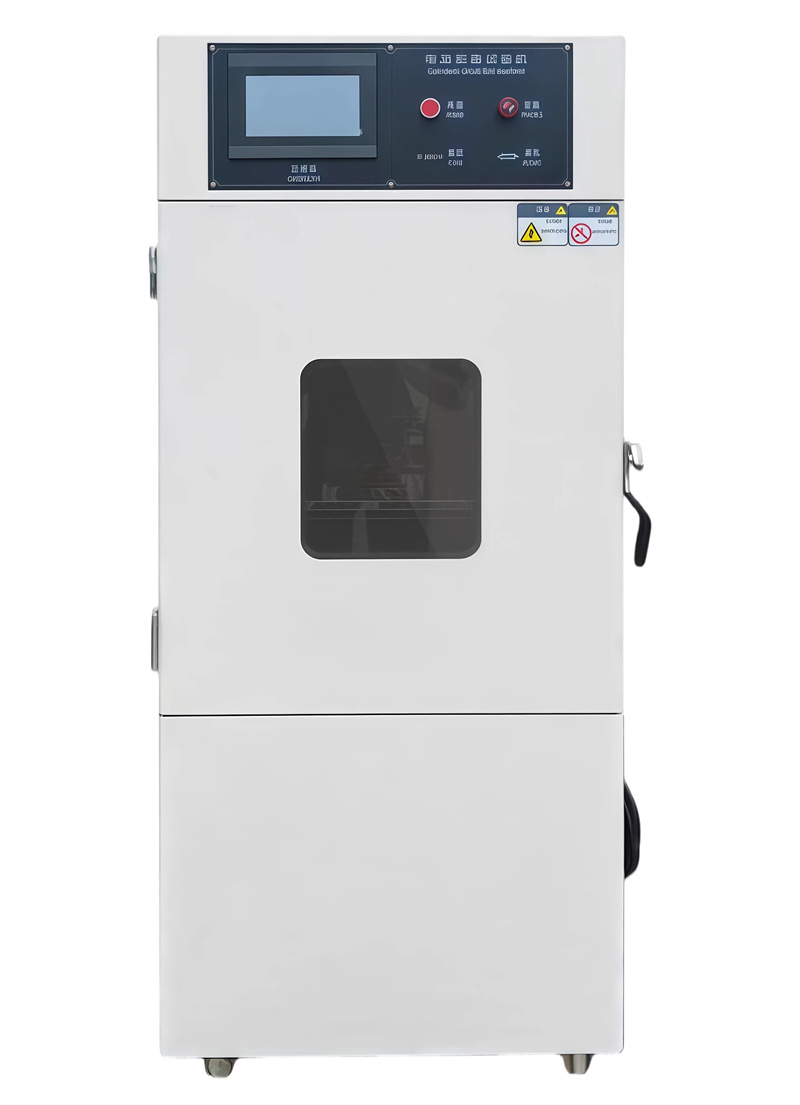

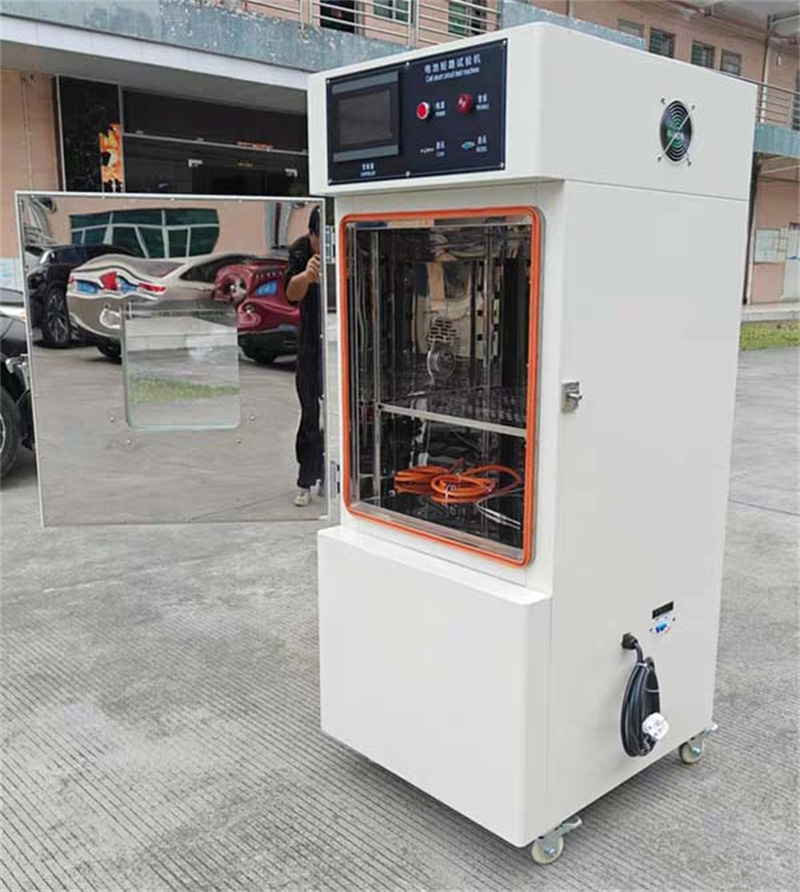

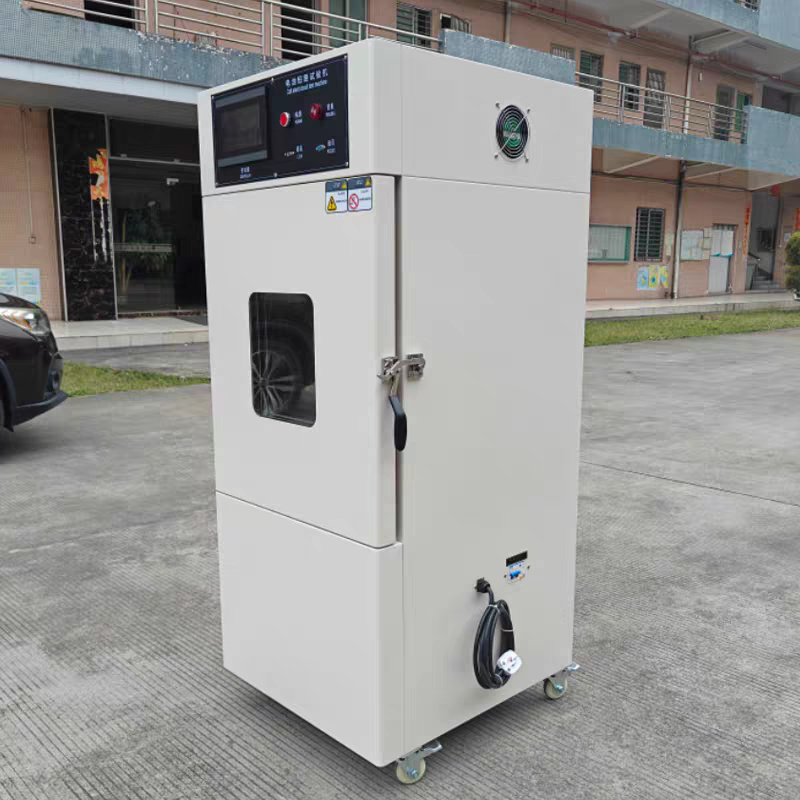

电池短路试验机

电池短路试验机

一、满足GB/IEC/EN/UN38.3/UL/0C/T743-2006《电动汽车用锂离子蓄电池》“863计划"节能与新能源汽力重大项目----2008年度EV用锂离子动力蓄电池性能测试规范等标准规范;按标准要求短路装置必须符合内阻范围≤100M，从而获得试验要求的最大短路电流。
1. Complies with GB/IEC/EN/UN38.3/UL/0C/T743-2006 "Lithium-ion Batteries for Electric Vehicles" and the "863 Program" Energy-saving and New Energy Vehicle Power Major Project-2008 Performance Testing Specifications for EV Lithium-ion Power Batteries. The short-circuit device must meet the internal resistance requirement of ≤100Ω to achieve the maximum short-circuit current specified in the test.

2、冲击电压:AC1KV/1.2-50US(峰值)1MIN
2. Surge voltage: AC 1KV/1.2-50μs (peak) for 1 minute

3、直流响应时间:<5US
3. DC response time: <5μs

4、装置内阻:<100MQ
4. Internal resistance of the device: <100MQ

5、最大短路电流:1000A
5. Maximum short-circuit current: 1000A

6、最大充许通过电流:4LE 5SECONDS
6. Maximum allowable current: 4A for 5 seconds

7、机台尺寸:500X500X700MM
7. Machine dimensions: 500X500X700MM

8、机械受命:30万次
8. Mechanical duty cycle: 300,000 cycles

9、电受命:阻性负载5万次
9. Electrical command: 50,000 cycles for resistive load

10、感性负载:阻性负载60%LE，2万次
10. Inductive load: 60%LE for resistive load, 20,000 cycles

11、工作环境:温度-10℃~100℃湿度10~90%无凝露
11. Working environment: Temperature-10°C to 100°C, humidity 10% to 90%, no condensation

12、防爆箱尺寸:350X350X350MM
12. Explosion-proof box dimensions: 350x350x350 mm

13、使用电源:220V，50/60HZ,20A
13. Power supply: 220V,50/60Hz, 20A
