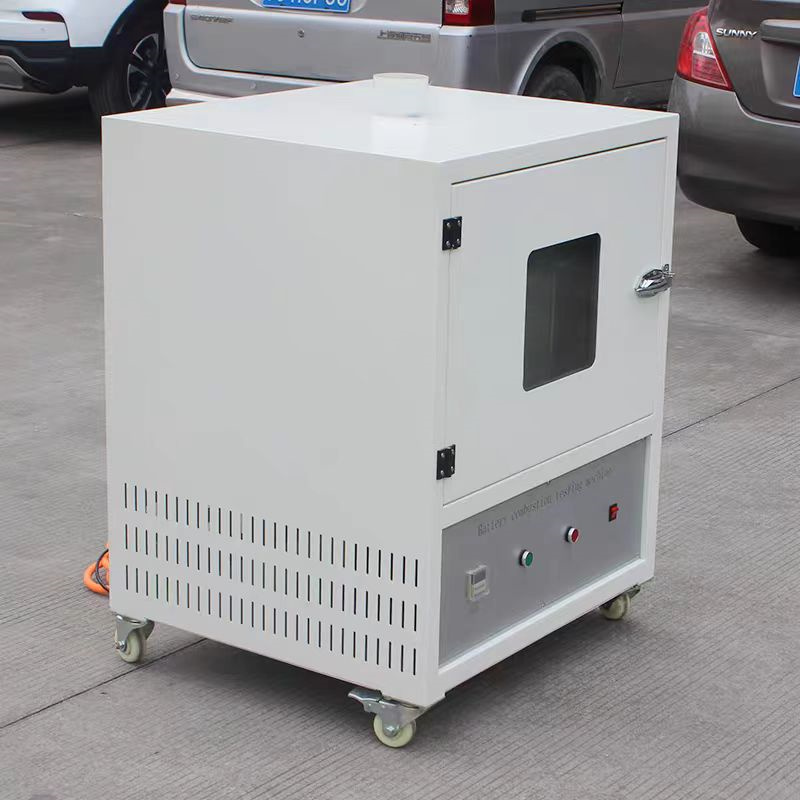

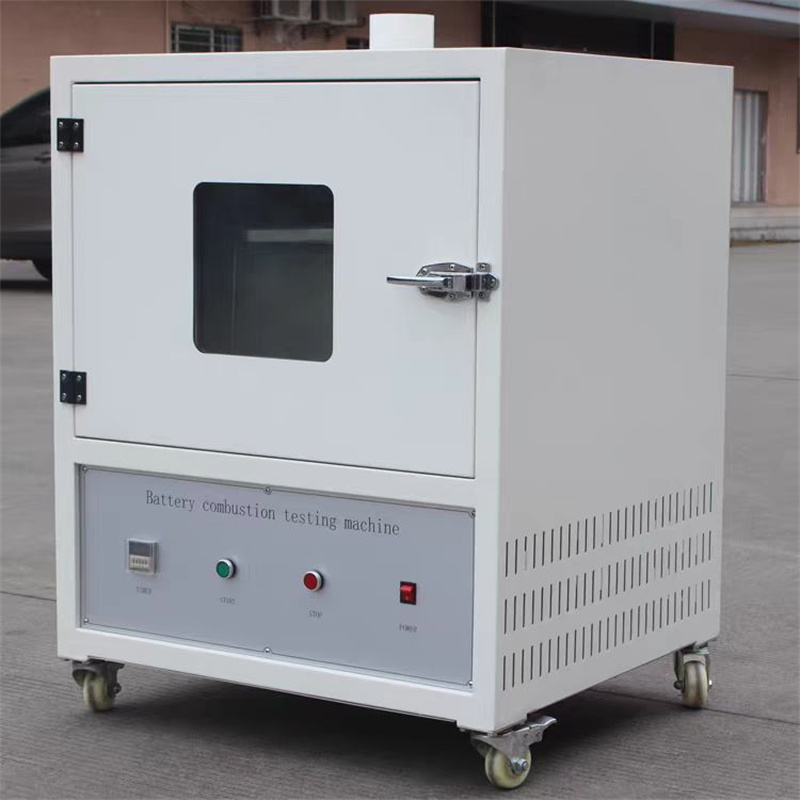

电池燃烧试验机

电池燃烧试验机

一、电池燃烧试验机 battery combustion tester
（1）主要用于电池耐燃性试验，该项电池性能测试主要是测试电池遇到明火时电池安全性能的可靠度，及电池抗燃性能。能满足UL1642，SJ/T11170等测试方法之需求、多种测试方法之需求
(1) Primarily used for battery flammability testing, this battery performance test mainly evaluates the reliability of battery safety performance and flame resistance when exposed to open flames. It meets the requirements of testing methods such as UL1642 and SJ/T11170, as well as various other testing methods.

（2）原理:
样品(电池)要放在将网筛固定在离燃烧器顶端的上方38.1MM，网筛每25.4MM有20个孔眼，钢丝直径0.43MM;点燃燃烧器同时对电池燃烧情况进行观察，一直到电池爆炸或电池烧毁为止并对燃烧过程进行计时。
(2) Principle:
The sample (battery) should be placed with the mesh sieve fixed 38.1mm above the top of the burner. The sieve has 20 holes every 25.4mm, with a steel wire diameter of 0.43mm. Ignite the burner while observing the battery's combustion until it explodes or burns out, and time the combustion process.

二、产品参数: Product Parameters
1.燃烧器:本生灯，管口内径为9.5MM长约100MM
1. Burner: A Bunsen burner with an inner diameter of 9.5 mm and a length of approximately 100 mm.
2.火焰施加时间:0~999.9秒+0.1秒
2. Flame application time: 0~999.9 seconds +0.1 seconds
3.试验圆孔表面直径:为102MM
3. The diameter of the test hole is 102MM.
4.自动点火，试验过程自动控制。
4. Automatic ignition and automatic control of the test process.
5.使用气体:液化气，或甲烷
5. Gas used: liquefied petroleum gas (LPG) or methane
6.测试罩宽度:24”(610MM)，八边形
6. Test hood width: 24" (610MM), octagonal
7.测试置高度:12"(305MM)
7. Test placement height: 12" (305MM)
8.含燃烧器及支撑架，试验桌，标准金属网罩,标准金属网筛
8. Includes burner and support frame, test table, standard metal mesh cover, and standard metal mesh sieve
